Shift Lock Mechanism

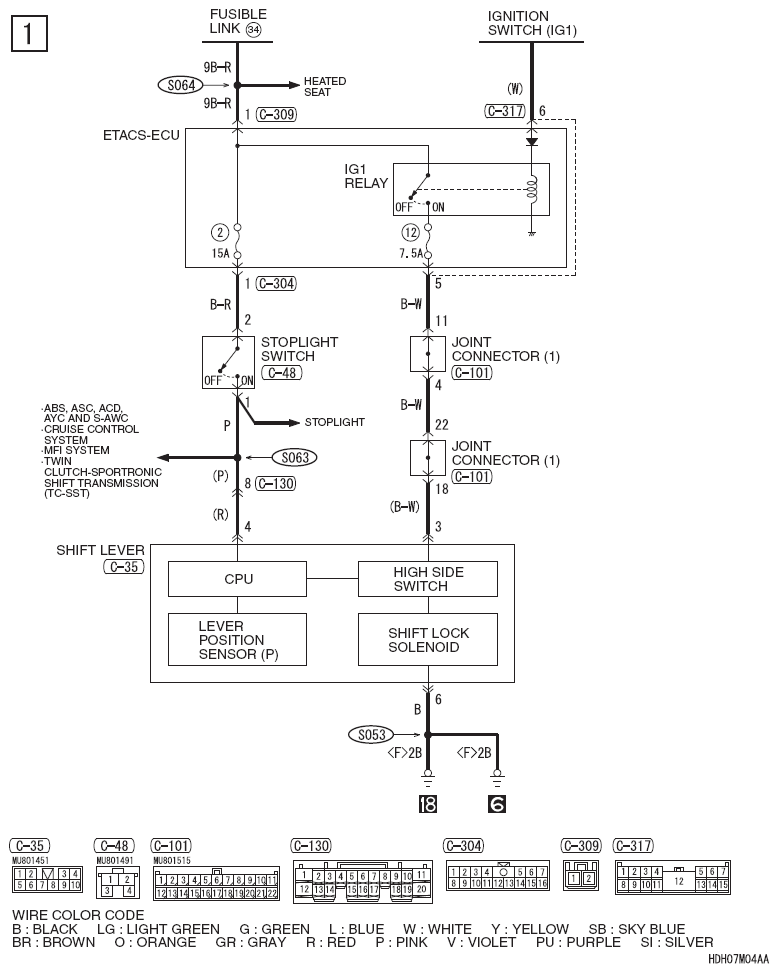

Fig 1: Shift Lock Mechanism Circuit Diagram

G08304743

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
