Remote Controlled Mirror

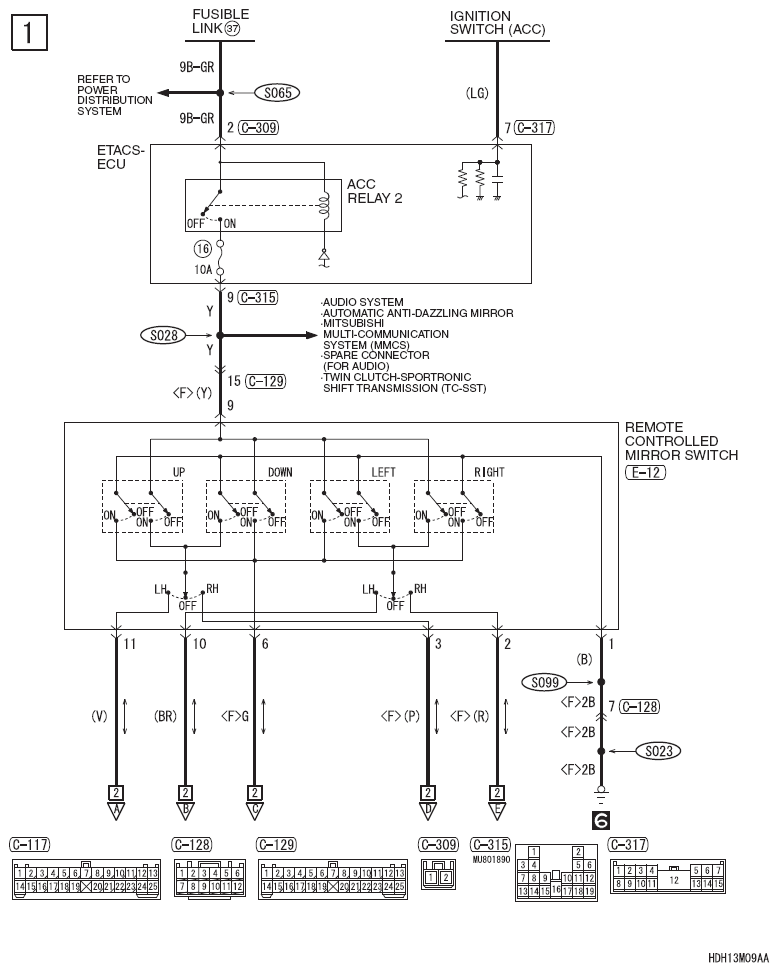

Fig 1: Remote Controlled Mirror Circuit Diagram (1 Of 2)
G08304871Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

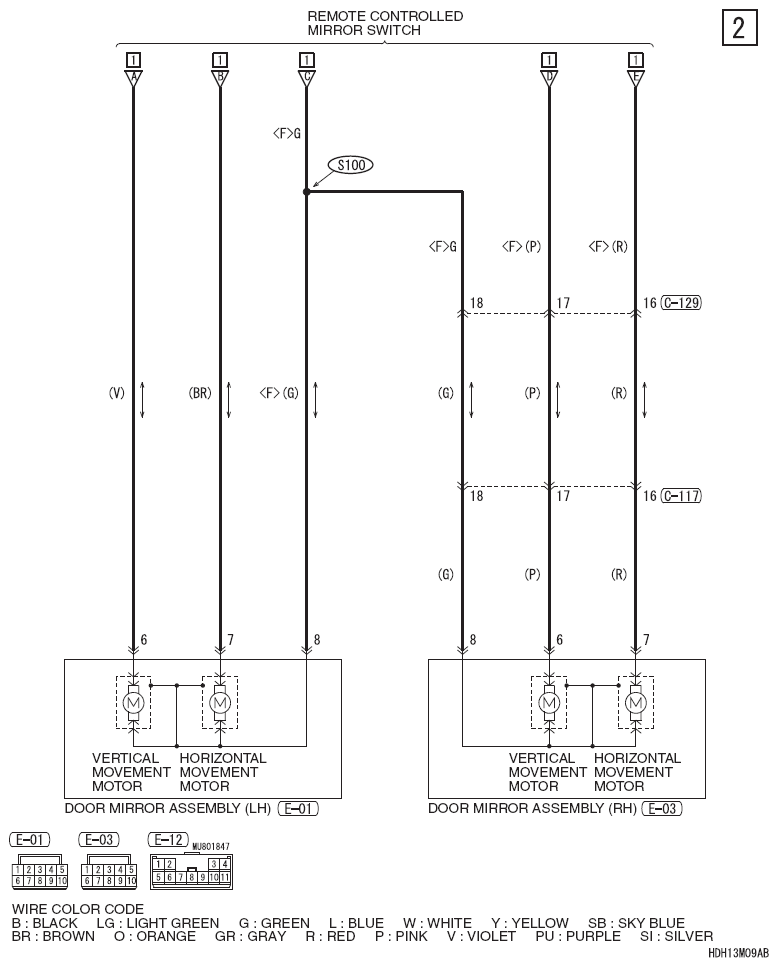

Fig 2: Remote Controlled Mirror Circuit Diagram (2 Of 2)
G08304872Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
