Lancer Evolution MR
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Circuit Diagrams - Lancer Evolution
>>
Ignition System
Ignition System

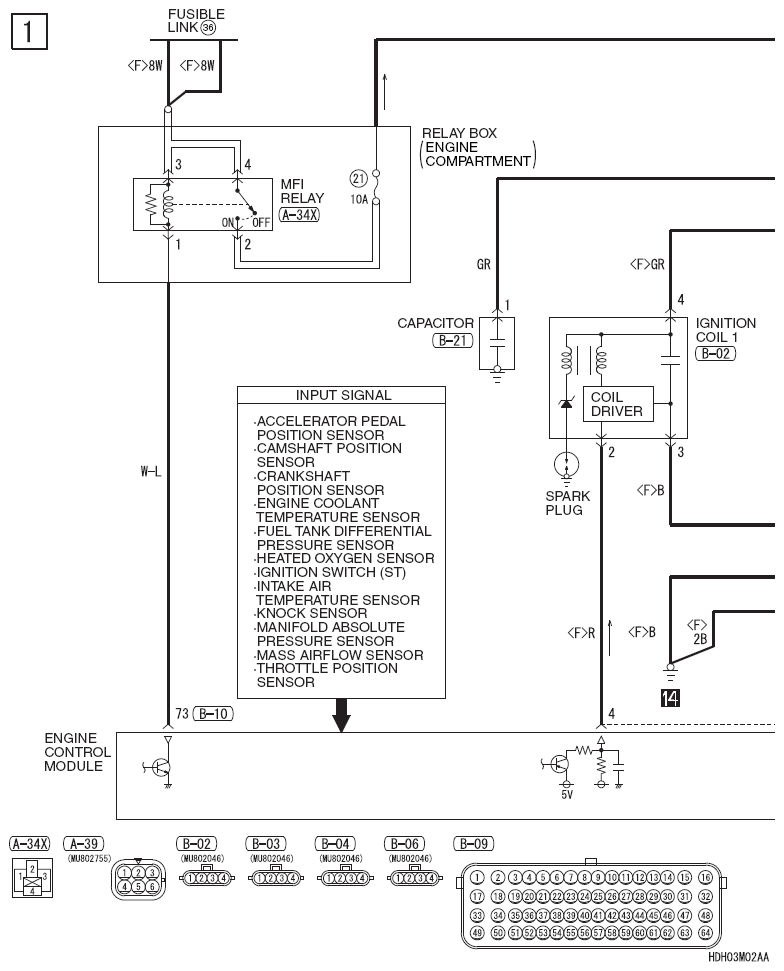

Fig 1: Ignition System Circuit Diagram (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

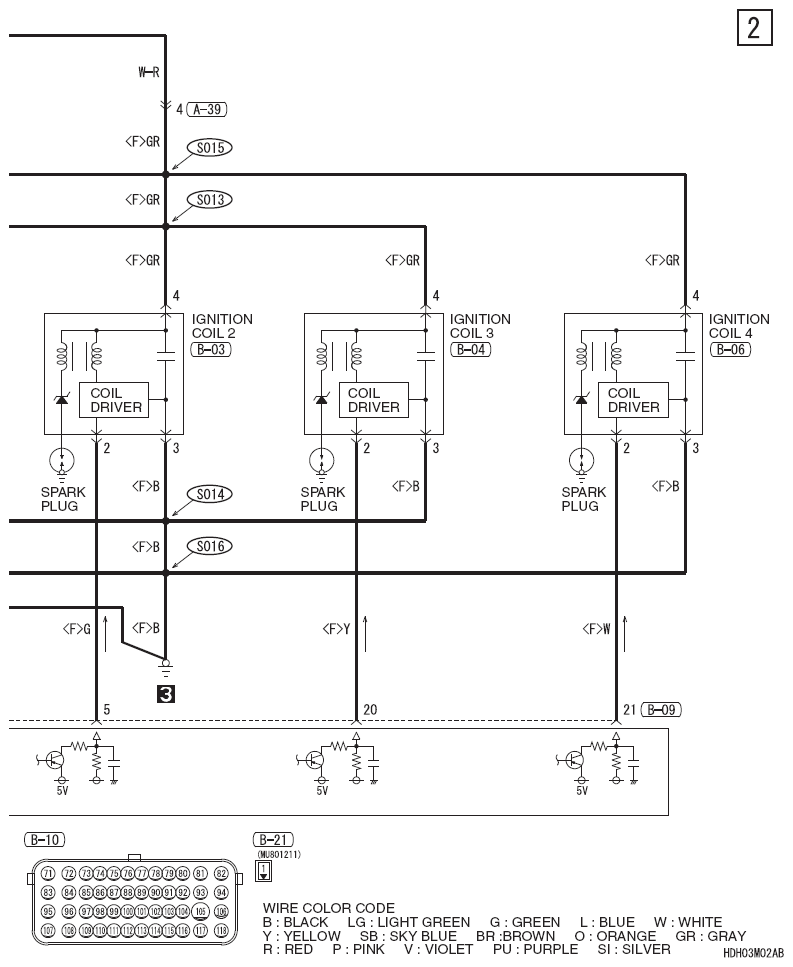

Fig 2: Ignition System Circuit Diagram (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

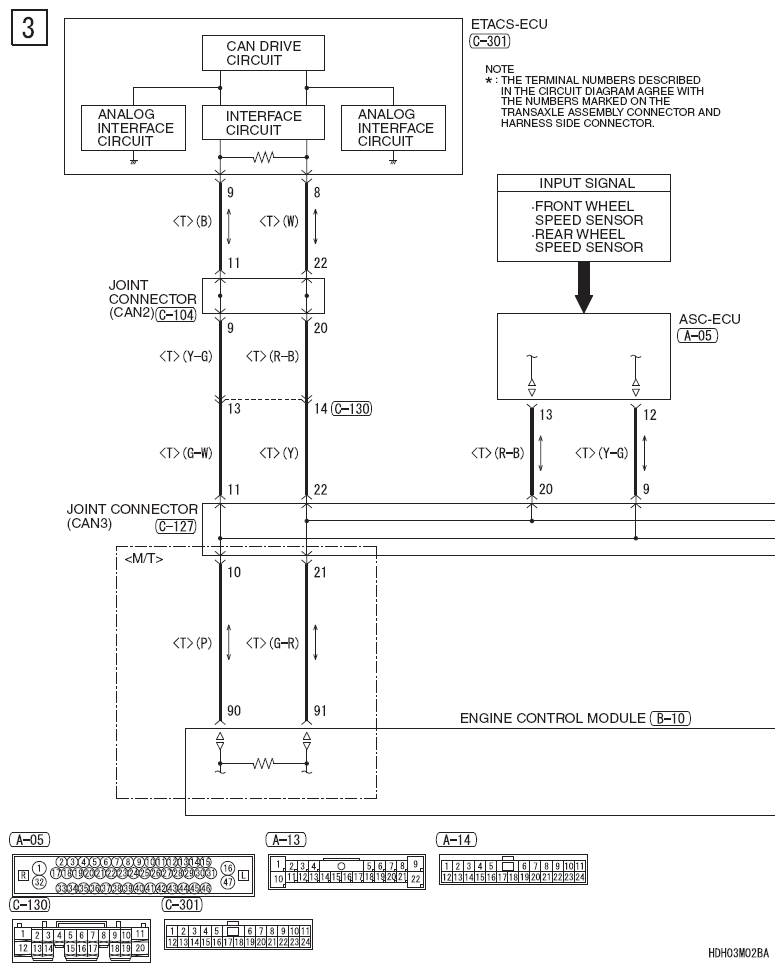

Fig 3: Ignition System Circuit Diagram (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

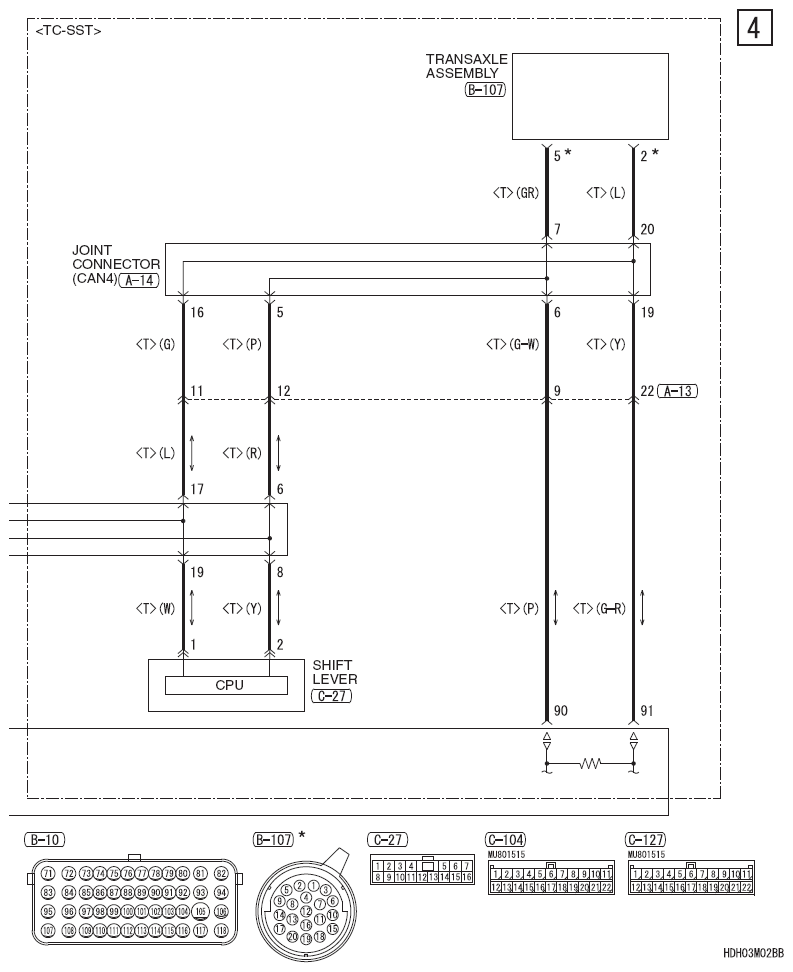

Fig 4: Ignition System Circuit Diagram (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
