Accessory Socket

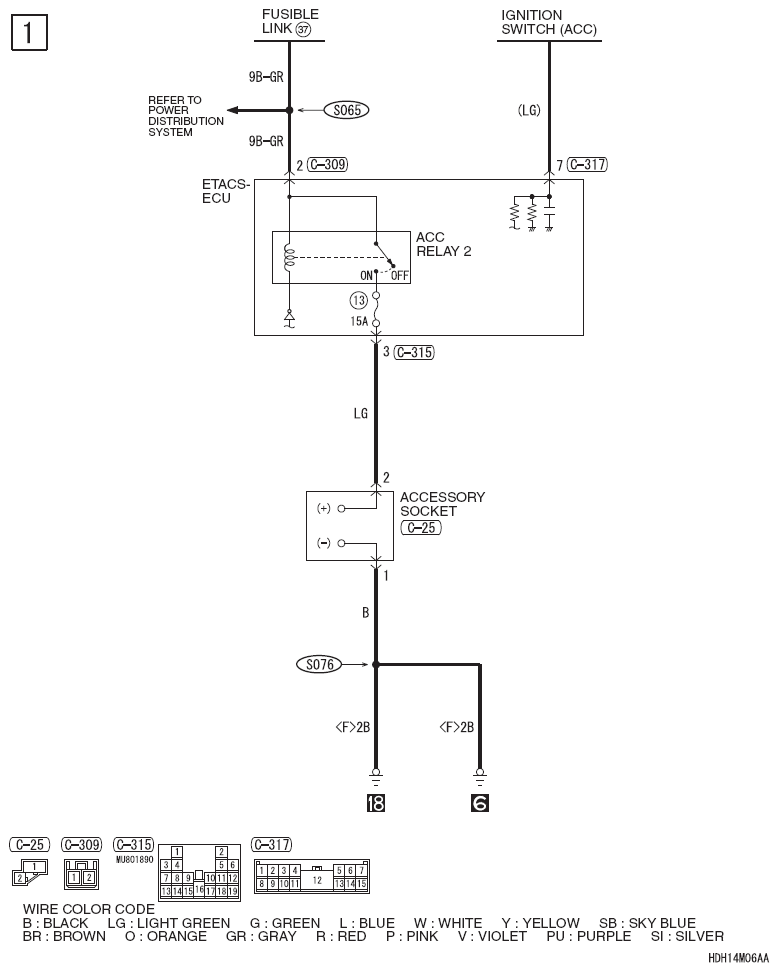

Fig 1: Accessory Socket Circuit Diagram

G08304915

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
