The USB Adapter Data Cannot Be Replayed - Vehicles With MMCS: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the USB box, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

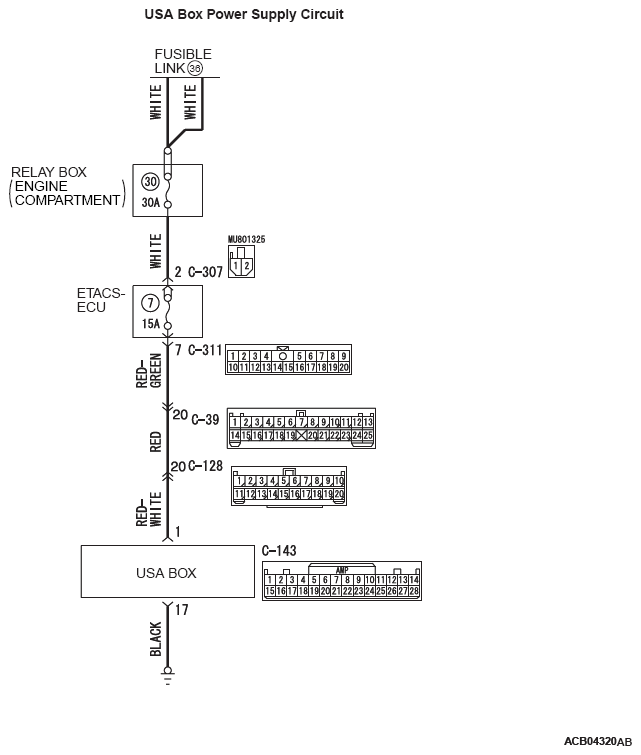

Fig 1: USA Box Power Supply Circuit Diagram
G08296376Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

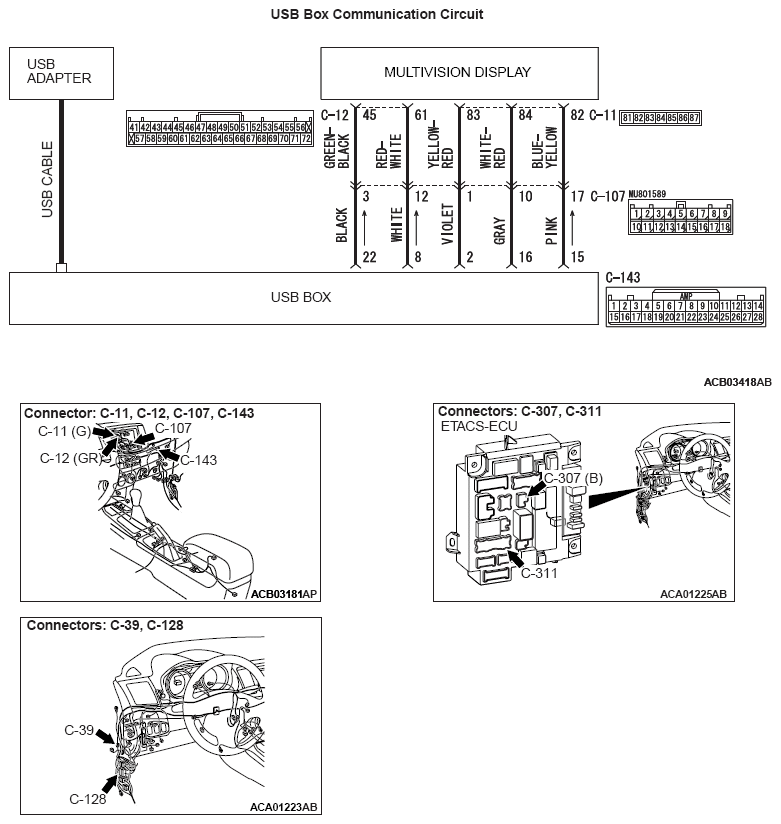

Fig 2: USB Box Communication Circuit Diagram
G08296381Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
