General Information: Operation

WARNING: This page is about a different variant/trim than selected.

When the shift lever < M/T, TC-SST > or selector lever < CVT > is moved to the "R" (Reverse) position with the ignition switch "ON", the rear view monitor (integrated in interior mirror) displays the rear view via the rear view camera automatically.
The indicator illuminates green when the rear view monitor (integrated in interior mirror) displays the rear view.
Functions can be changed over each time the switch is pressed.

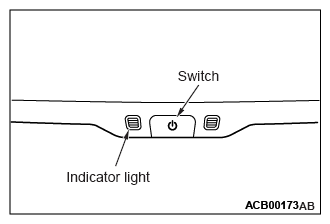

Fig 1: Identifying Switch And Indicator Light
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

SWITCH OPERATION AND SYSTEM OPERATION

Function	Selector lever position	Time for the switch to be pressed	Operation
Interior mirror monitor function	"R" (Reverse) position	Less than 5 seconds	Monitor on and off. When the ignition switch is turned "ON", the monitor will be switched on automatically. If the switch is pressed to switch the monitor off, the indicator illuminates orange.
		6 - 11 seconds	Language selection for warning text on the monitor. Languages is changed over each time the switch is pressed. An applicable language will be memorized in five seconds after it is selected.
		More than 12 seconds	Setting the monitor to be always off. The indicator illuminates orange. When the ignition switch is turned "ON" at the next time, this monitor-OFF setting is memorized. If the switch is pressed, the monitor will be restored.
