Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

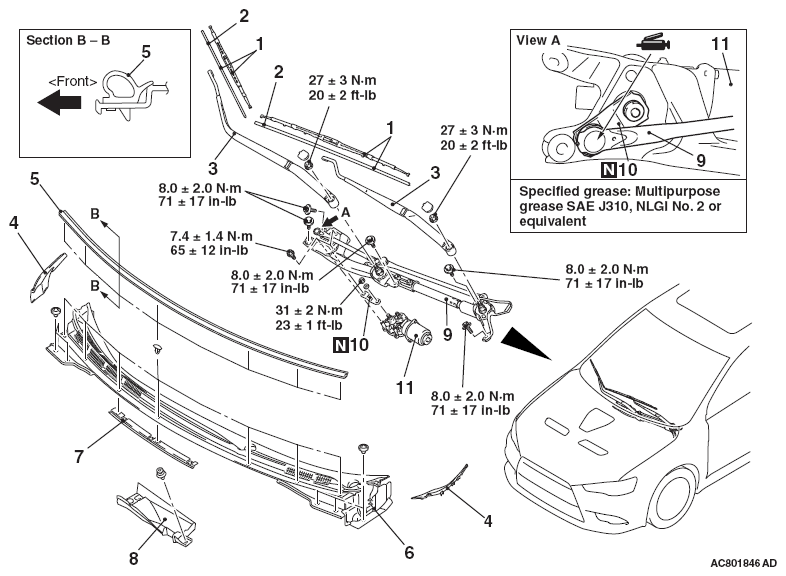

Fig 1: Windshield Wiper Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

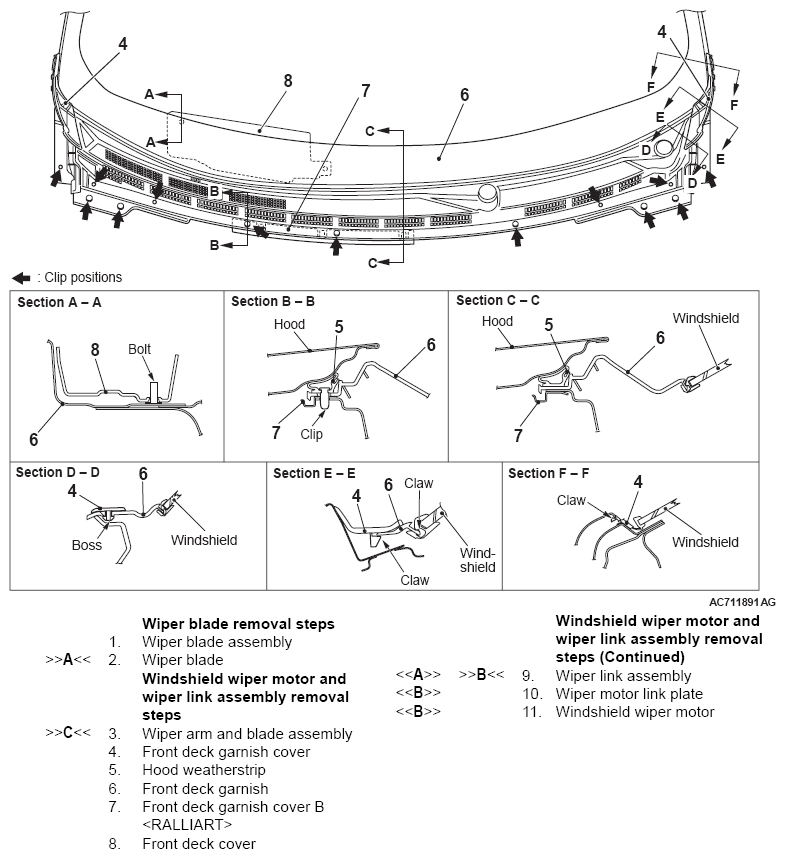

Fig 2: Identifying Windshield Wiper Clip Positions

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: For removal and installation of the wiper and washer switch, refer to COLUMN SWITCH .
