INSPECTION PROCEDURE: The Liftgate Lock Release Handle Signal Is Not Received: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

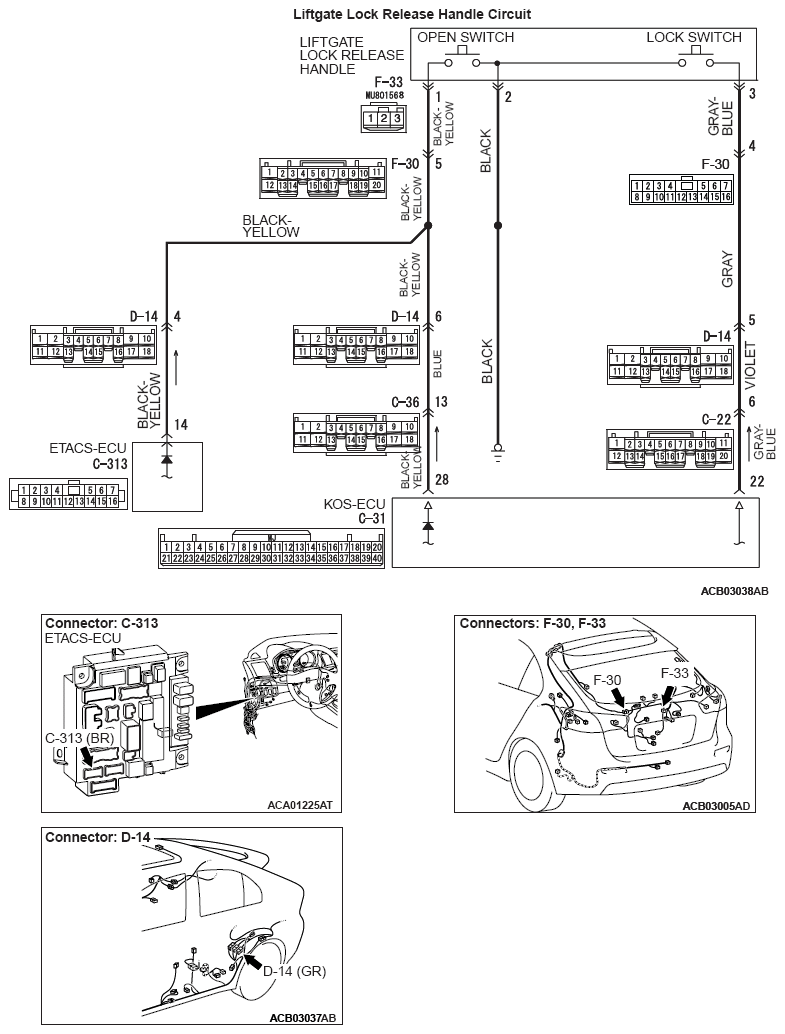

Fig 1: Liftgate Lock Release Handle - Circuit Diagram
G08294510Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
