Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

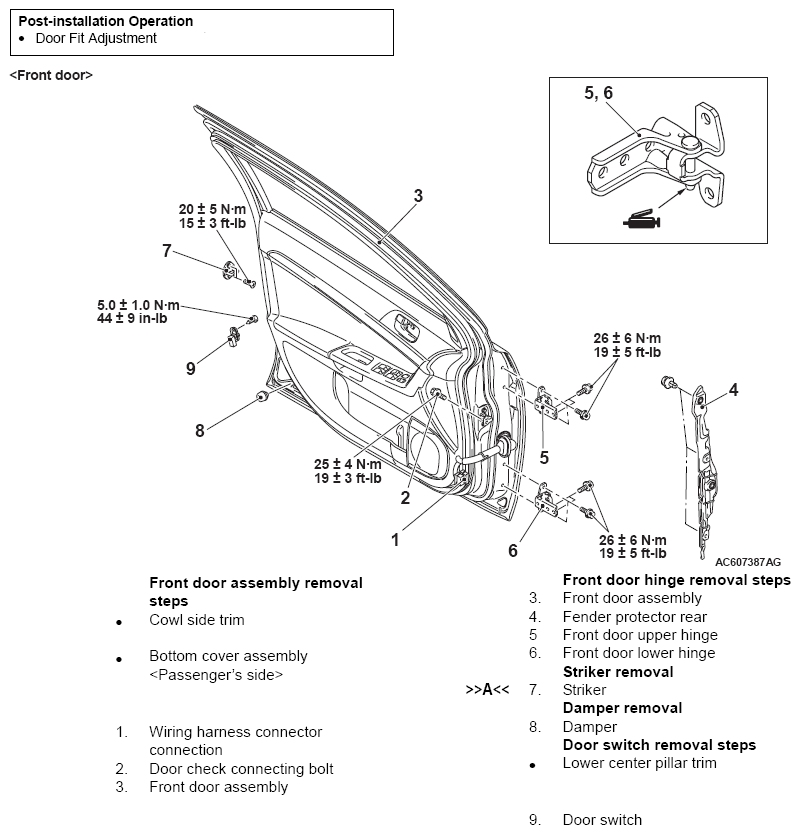

Fig 1: Front Door Assembly Components With Torque Specifications
G08294458Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

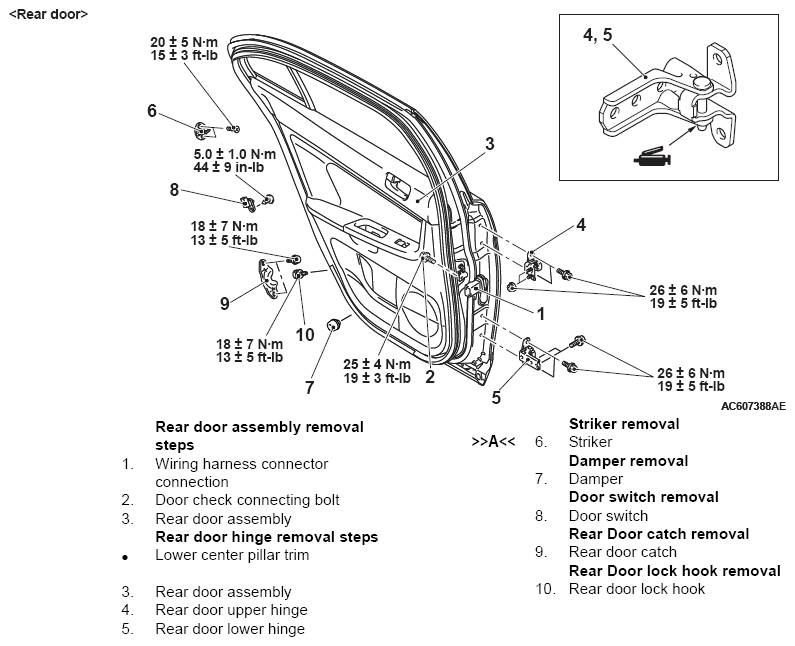

Fig 2: Rear Door Assembly Components With Torque Specifications
G08294459Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
