DTC C2208: AWD-ECU Internal Error: Notes

WARNING: This page is about a different variant/trim than selected.

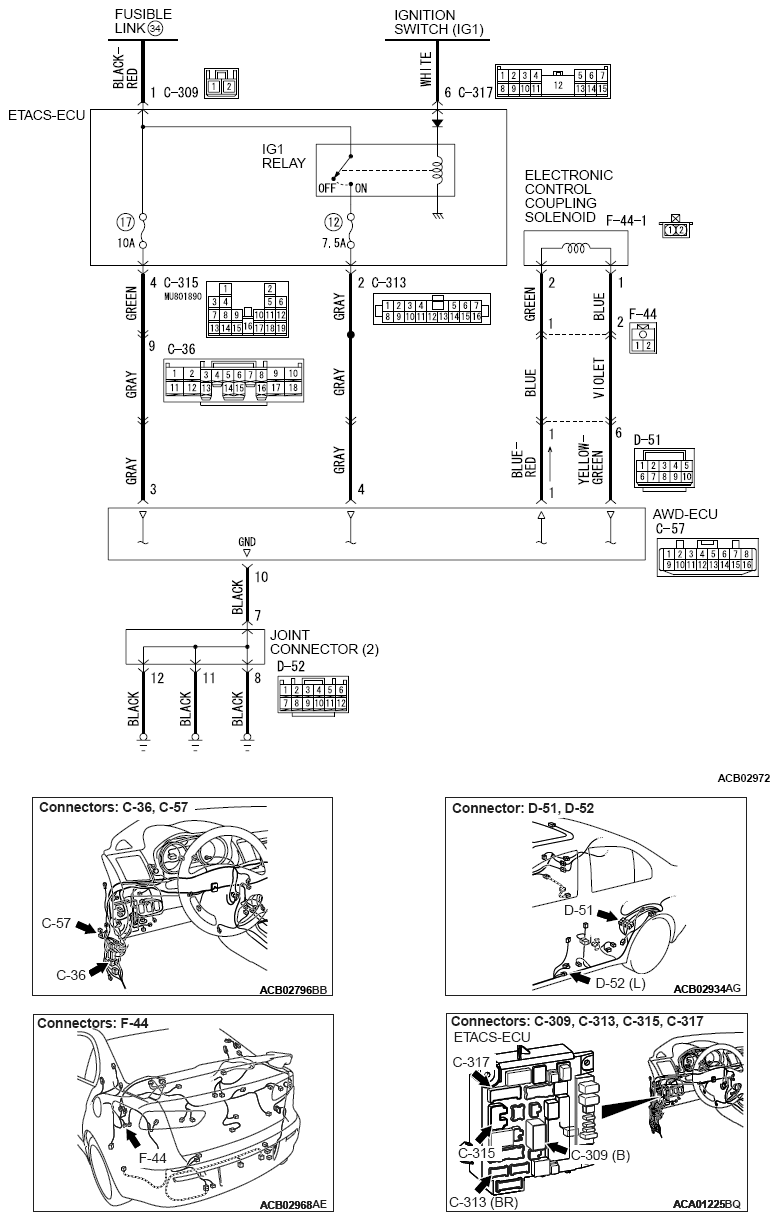

Fig 1: ETACS-ECU & Coupling Solenoid - Circuit Diagram (AWD-ECU Internal Error)
G08293735Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: If there is any problem in the CAN bus lines, an incorrect DTC may be set. Prior to this diagnosis, always diagnose the CAN bus lines.
