Removal And Installation

WARNING: This page is about a different variant/trim than selected.

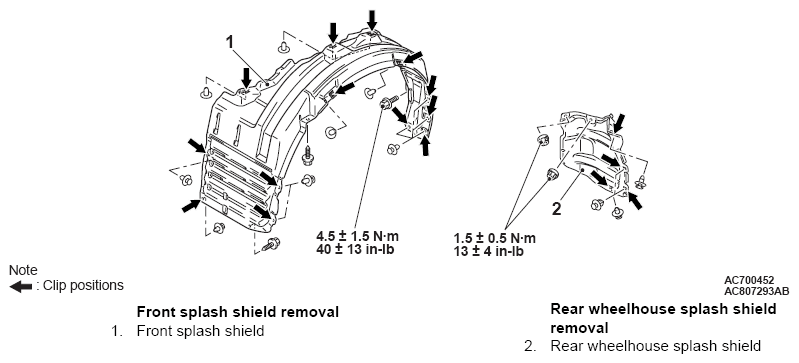

Fig 1: Front Splash Shield Components With Torque Specifications
G08294345Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
