Disassembly And Assembly: Notes

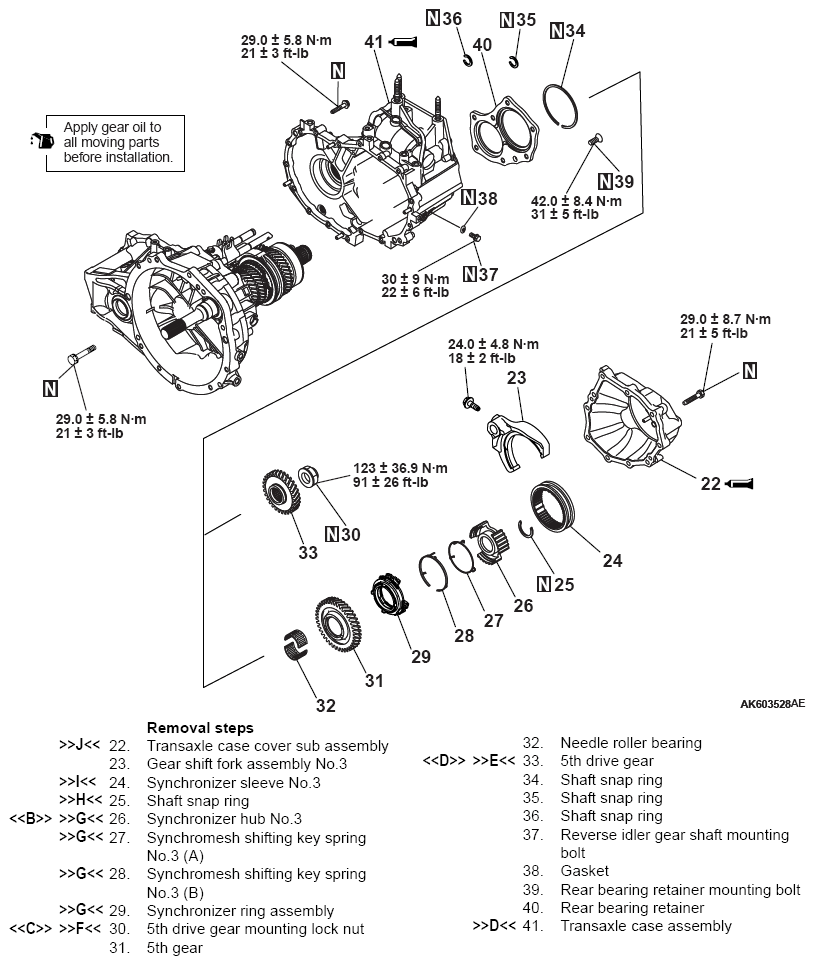

Fig 1: Transaxle Assembly Components With Torque Specifications (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

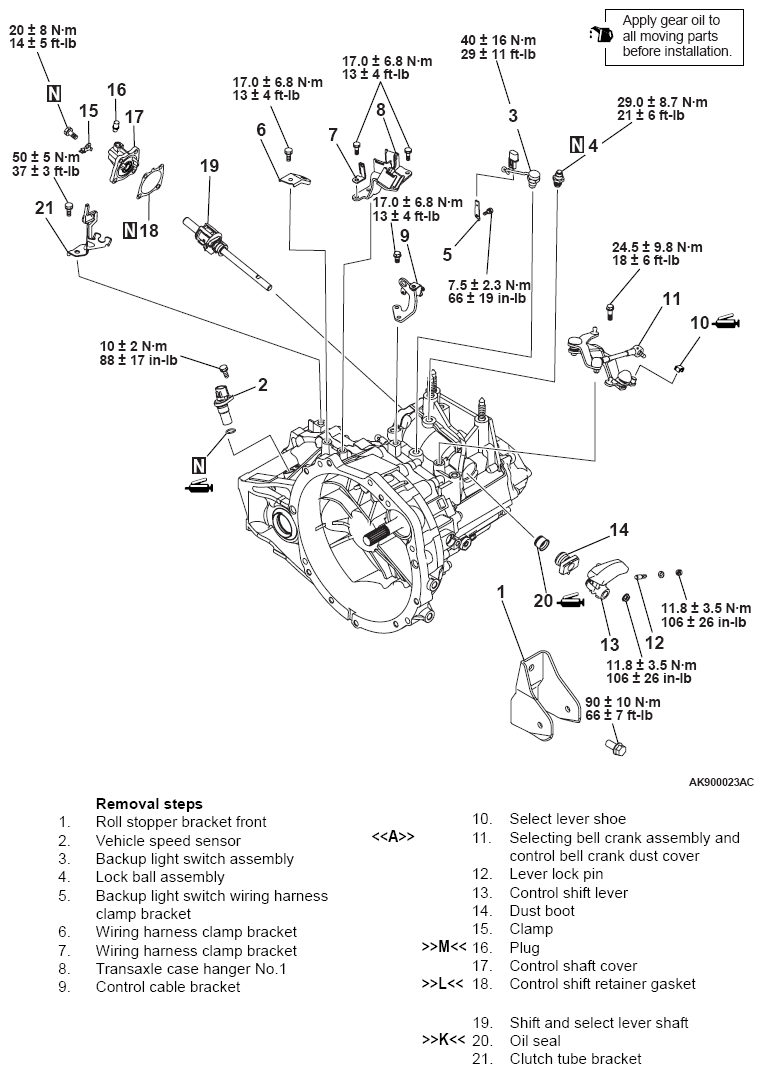

Fig 2: Transaxle Assembly Components With Torque Specifications (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

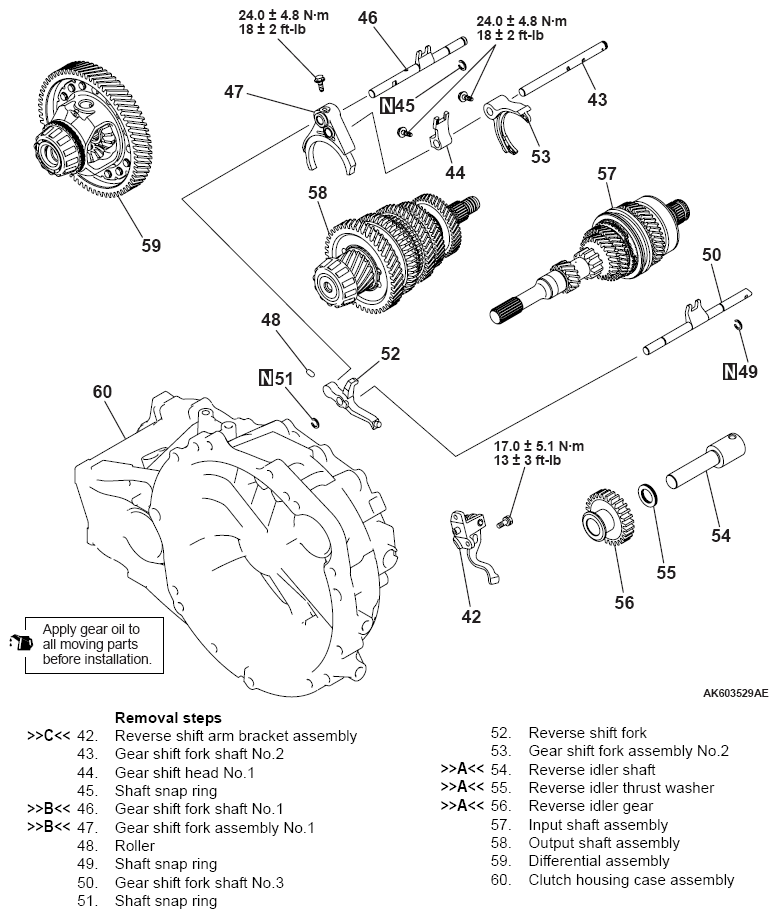

Fig 3: Transaxle Assembly Components With Torque Specifications (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB992221: Puller set
• MD998802: Input shaft Holder
• MB990801: Rear axle bearing outer race puller
• MB992038: Preload socket
• MB992219: Output shaft adapter
• MB992216: Installer
• MB992220: Input shaft adapter
• MB992212: Oil seal installer
• MB992075: Handle
• MB992000: Crankshaft adapter
