Removal And Installation - RALLIART

WARNING: This page is about a different variant/trim than selected.

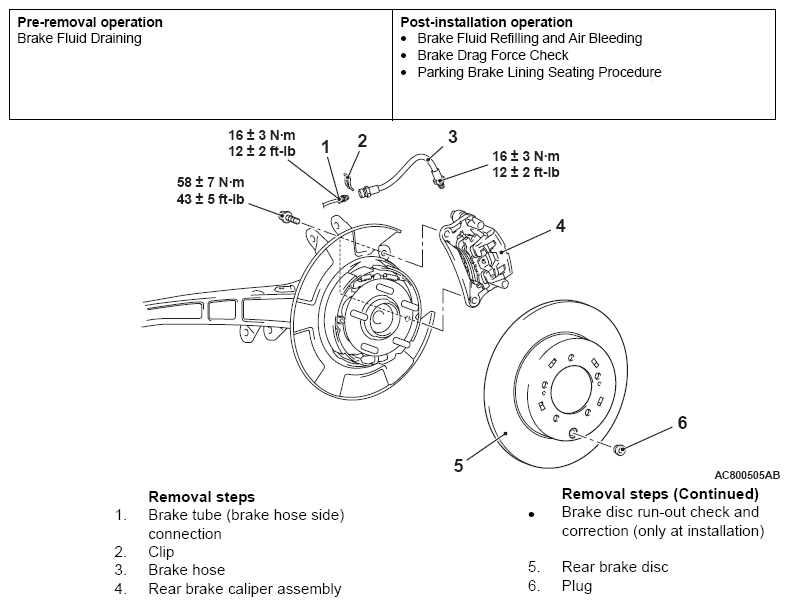

Fig 1: Rear Disc Brake Assembly Components With Torque Specifications (Ralliart)
G08292970Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
