Removal And Installation: Notes

CAUTION:
  • The part indicated by * is the bolt with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

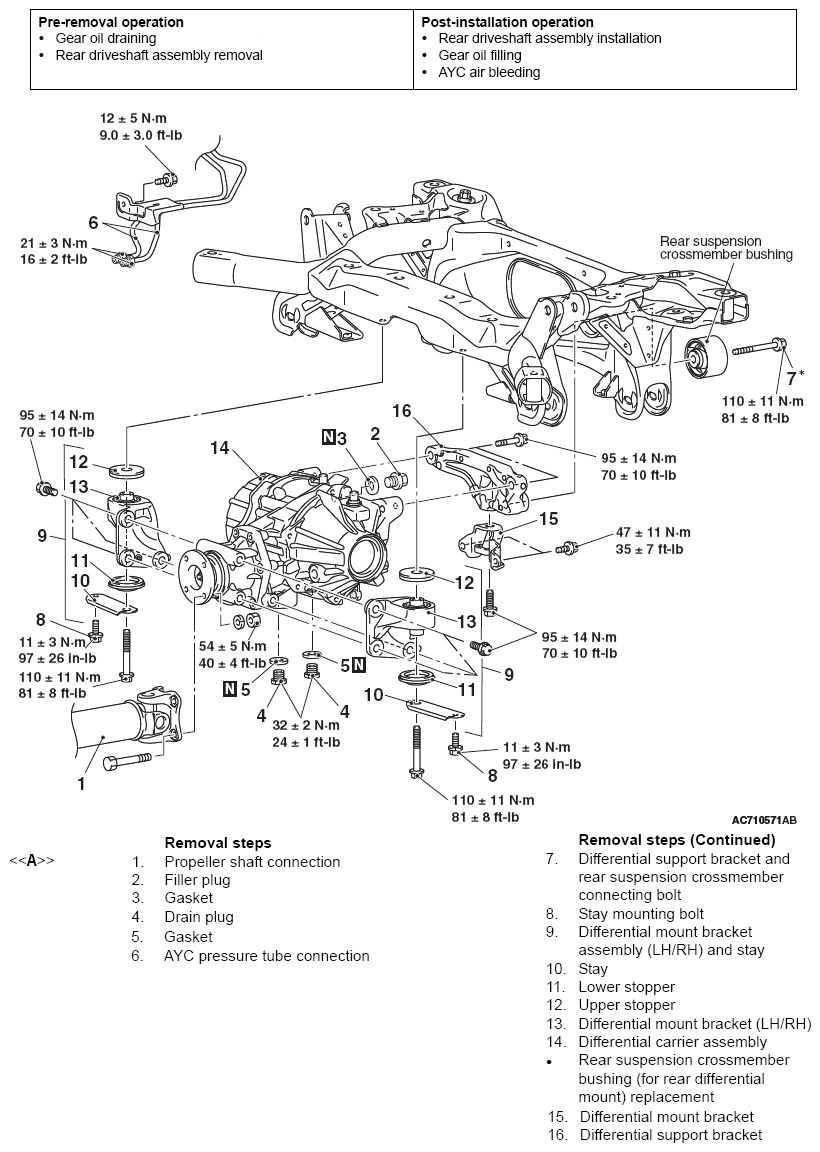

    Fig 1: Differential Carrier Assembly Components With Torque Specifications
    G06677524Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
