Section 25 (Keyless Operation System (Kos) - Lancer)
>>
General Information
>>
Control Of Locking Operation
Control Of Locking Operation
WARNING:
This page is about a different variant/trim than selected.

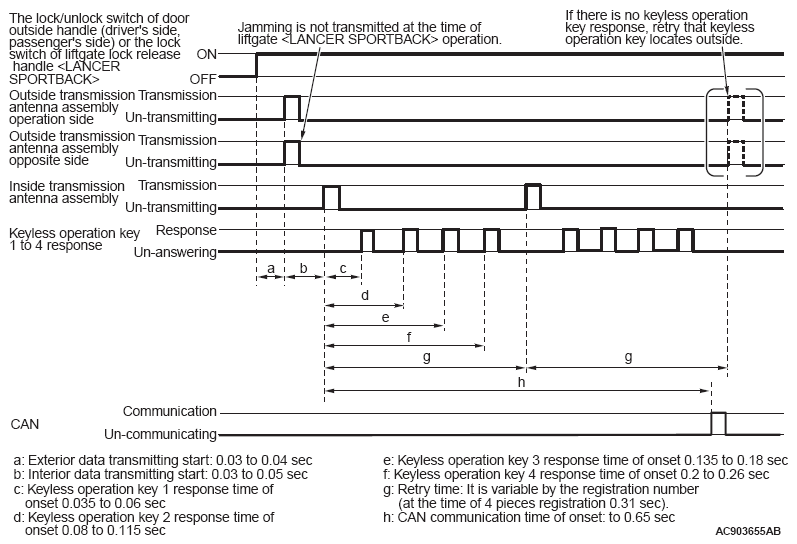

Fig 1: Locking Operation Control Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
