Removal And Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Do not use impact wrench.
Do not drop or shock the G and yaw rate sensor.
When the G and yaw rate sensor is replaced or reinstalled, always carry out calibration to make ASC-ECU learn the neutral point (Refer to G AND YAW RATE SENSOR CALIBRATION ).

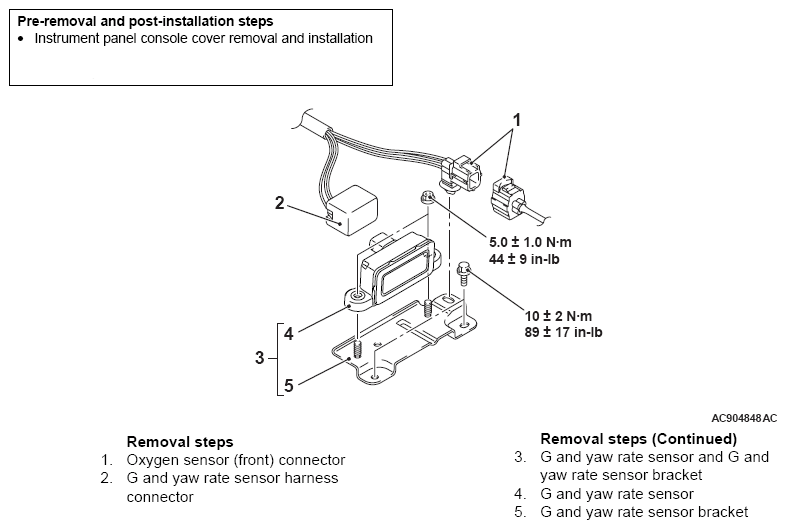

Fig 1: G And Yaw Rate Sensor Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
