Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

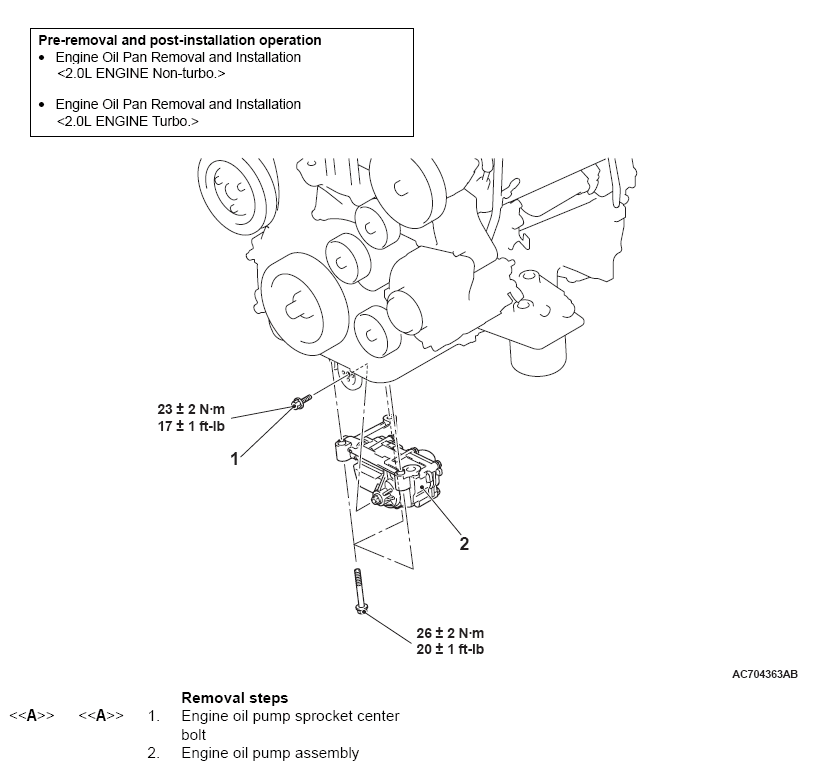

Fig 1: Oil Pump Components With Torque Specifications (2.0L Engine)
G08288006Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
