Emission Control - Lancer Evolution
>>
Vacuum Hoses
>>
Vacuum Hose Routing
Vacuum Hose Routing

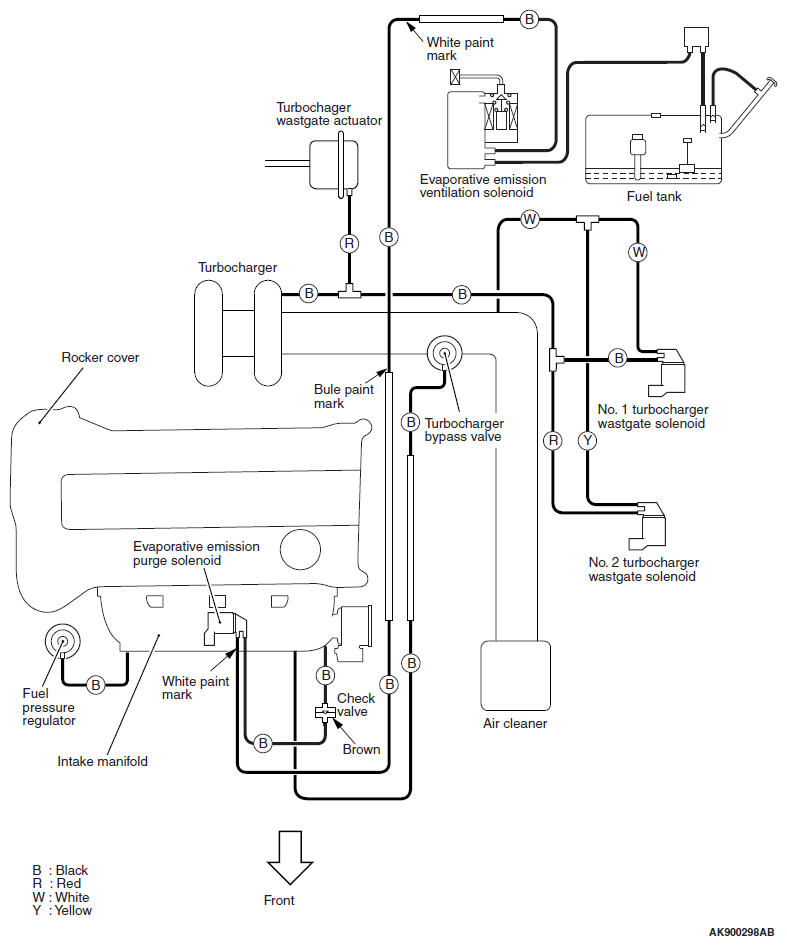

Fig 1: Vacuum Hose Routing System Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
