Lancer Evolution GSR
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Splice Locations - Lancer Evolution
>>
Dash Panel
Dash Panel

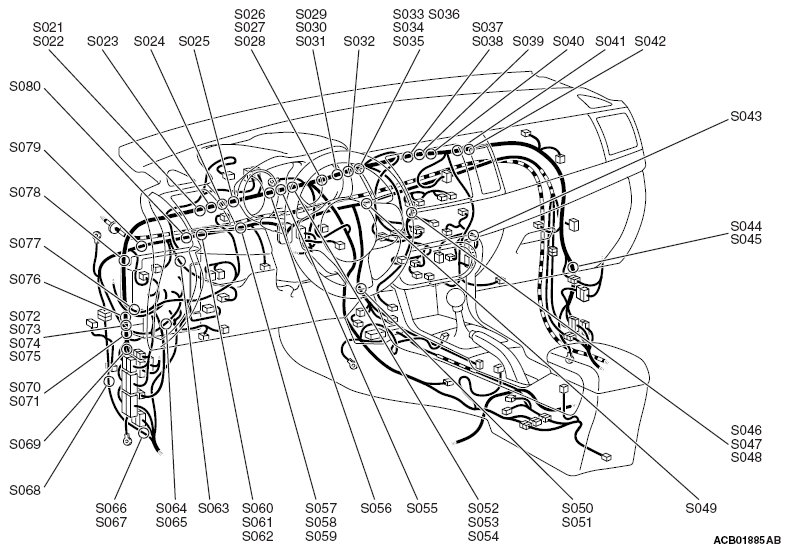

Fig 1: Identifying Splice Locations - Dash Panel
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
