CODE NO. L0632: S/R Switch Fail: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the input and output signal circuits are normal.

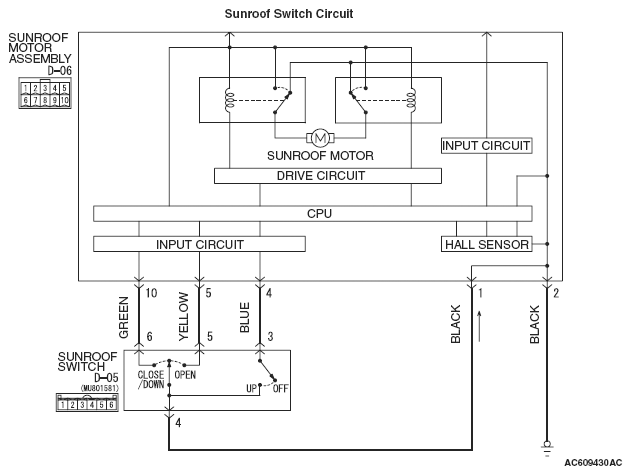

Fig 1: Sunroof Switch Circuit Diagram
G05395000Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Locating Connectors D-05 & D-06
G06675453Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
