INSPECTION PROCEDURE 1: Central Door Locking System Does Not Work At All: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

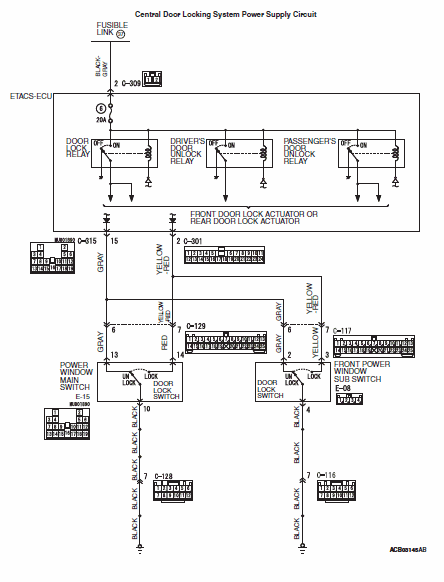

Fig 1: Central Door Locking System Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

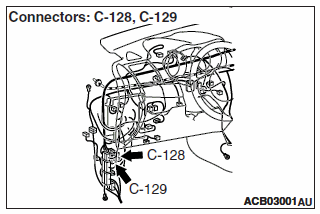

Fig 2: Locating Connectors C-128 & C-129

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Locating Connector E-15

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

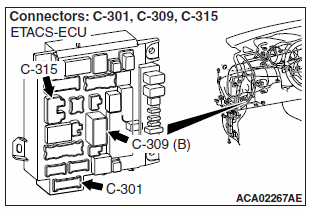

Fig 4: Locating Connectors C-301, C-309 & C-315

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
