Removal And Installation

WARNING: This page is about a different variant/trim than selected.
NOTE: When the radio and CD player are replaced, always turn the ignition switch to the ON position once and then carry out the operation check.

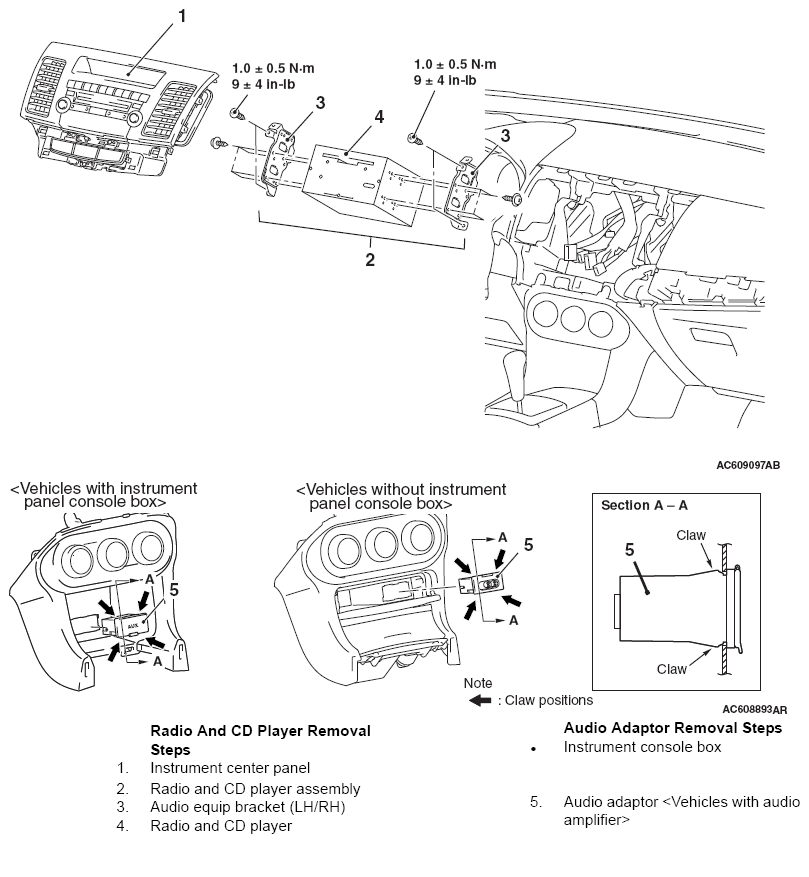

Fig 1: Radio & CD Player Components With Torque Specifications
G06676579Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
