Section 15 (Rear Axle - Lancer Evolution)
>>
Driveshaft Assembly
>>
Disassembly And Assembly
>>
Notes
Disassembly And Assembly: Notes
WARNING:
This page is about a different variant/trim than selected.

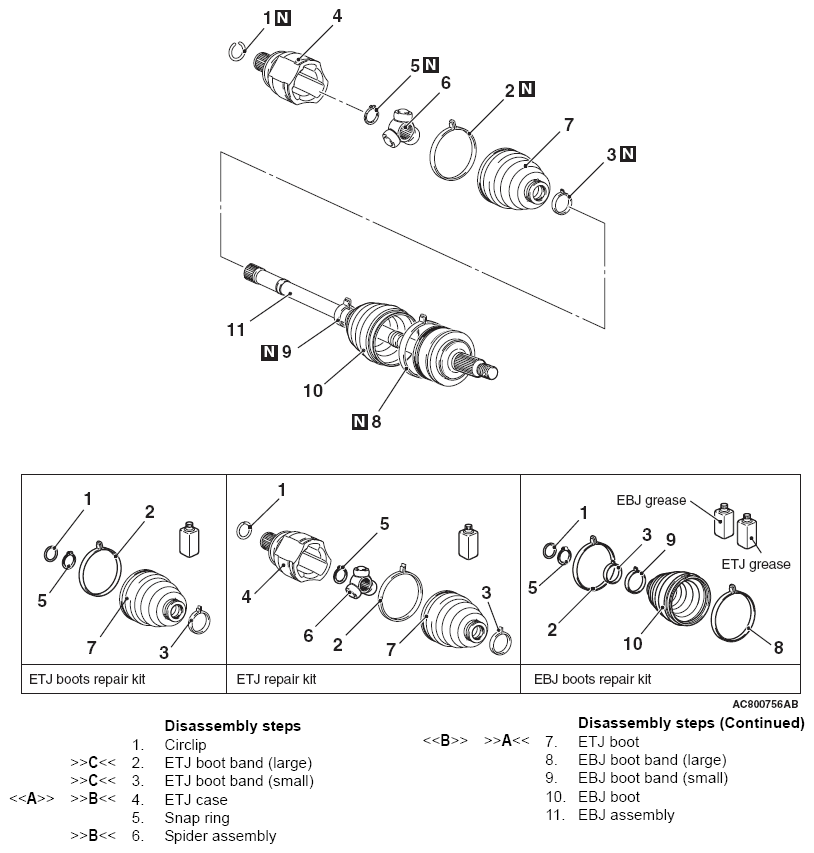

Fig 1: Exploded View Of Driveshaft Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
