Disassembly And Reassembly: Notes

WARNING: This page is about a different variant/trim than selected.

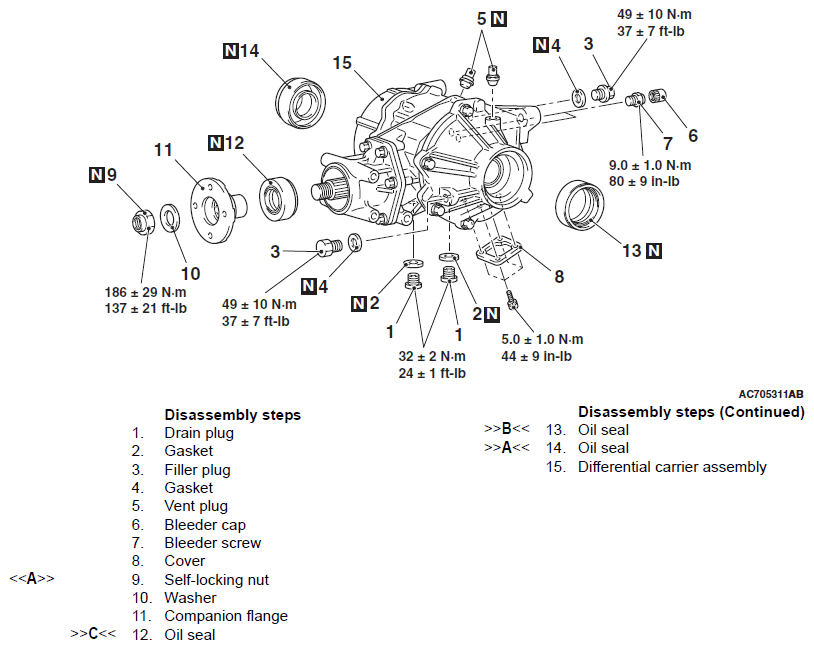

Fig 1: Exploded View Of Differential With Torque Specifications
G06677528Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
