INSPECTION PROCEDURE E-4: Keyless Entry System: The Trunk Is Not Opened When The Keyless Entry Transmitter "TRUNK" Button Is Operated: Notes

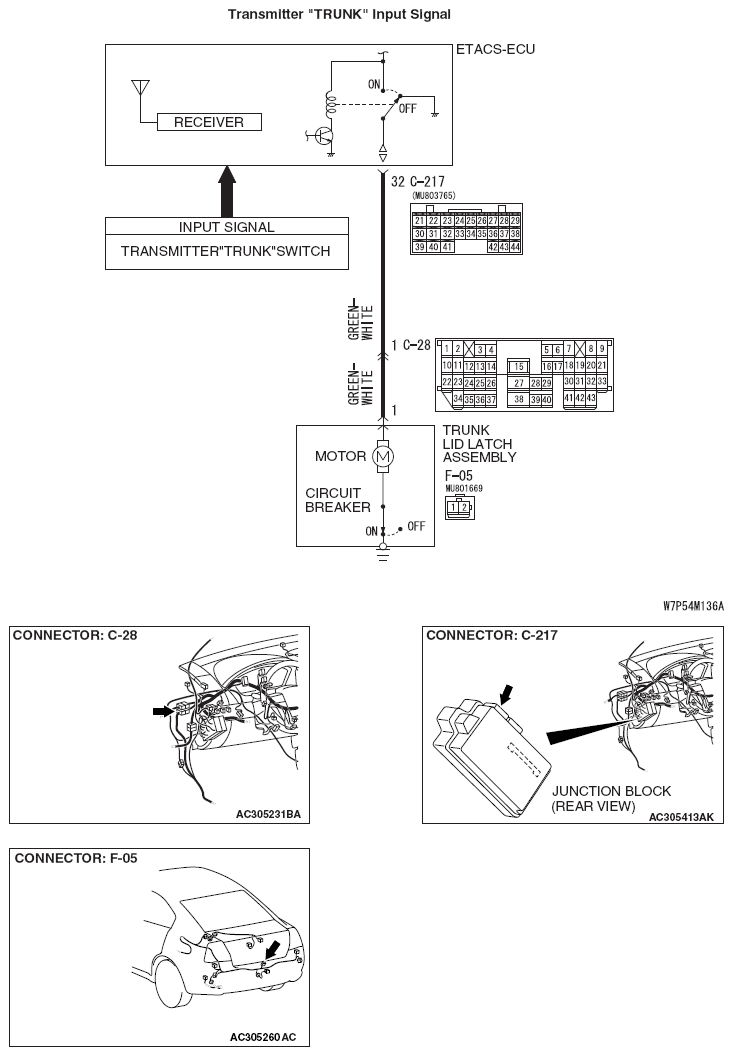

Fig 1: Transmitter "TRUNK" Input Signal Circuit
G06711997Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
