DTC C1271: Motor Drive Circuit: Notes

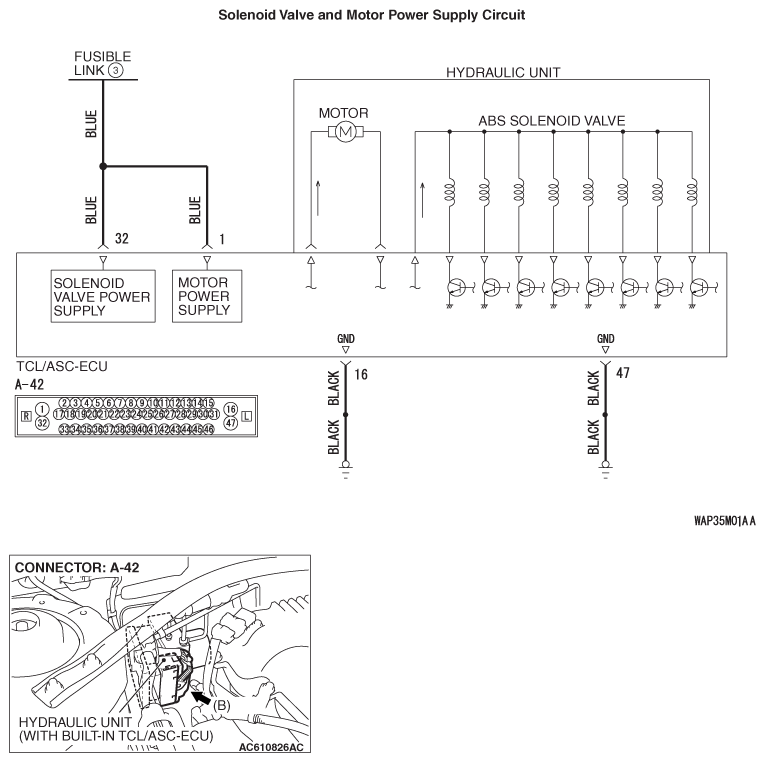

Fig 1: Solenoid Valve & Motor Power Supply Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.

CAUTION: Whenever the ECU is replaced, ensure that the CAN bus lines are normal.

CAUTION: When I replace hydraulic unit (integrated with TCL/ASC-ECU), Always perform the calibration of steering wheel sensor and yaw rate sensor.
