Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

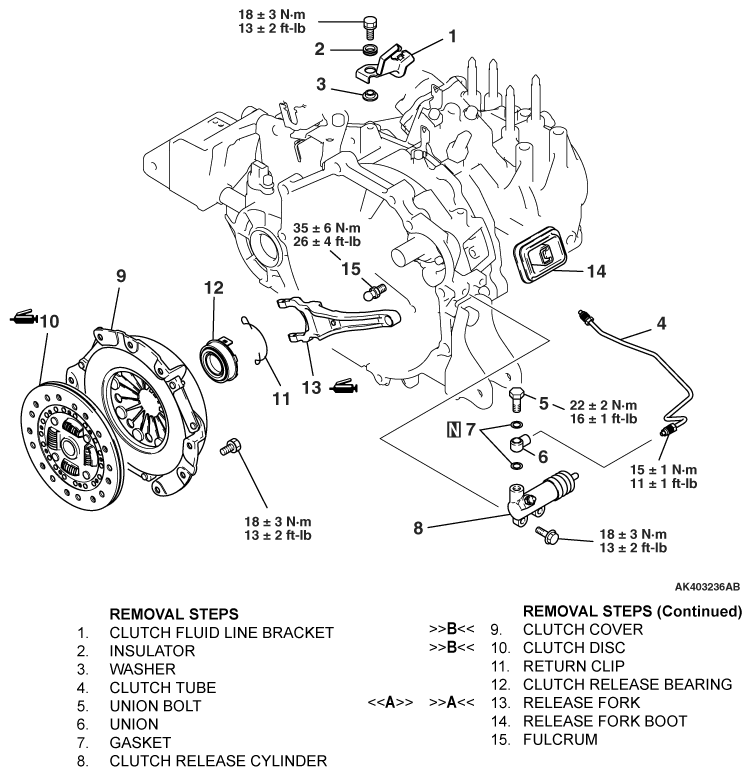

Fig 1: Clutch Disassembly And Assembly With Torque Specifications
G06692061Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
