Vacuum Hose Routing
>>
<3.8L Engine>
<3.8L Engine>

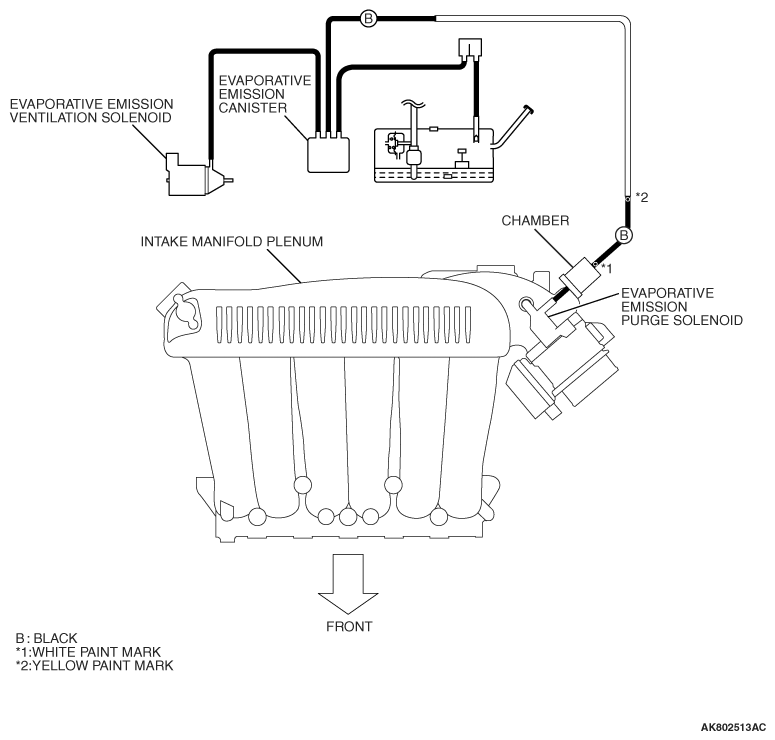

Fig 1: Vacuum Hose Routing - 3.8L Engine
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
