Accelerator Pedal
>>
Removal And Installation
>>
< Vehicles with aluminum pedal pad >
< Vehicles with aluminum pedal pad >

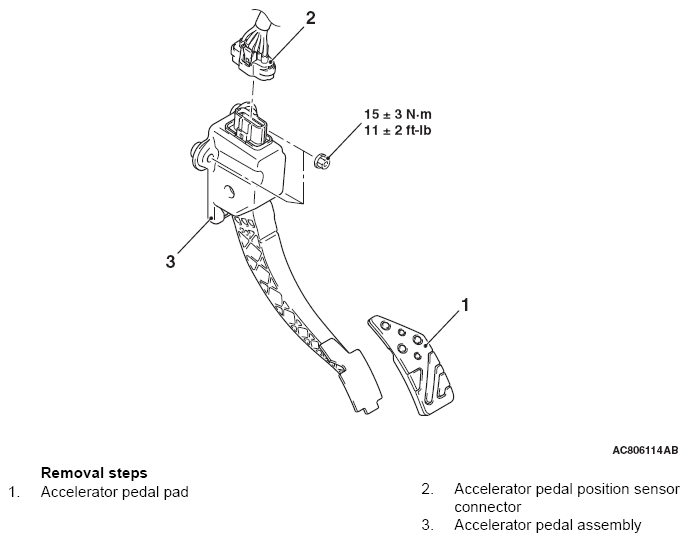

Fig 1: Removing/Installing Accelerator Pedal With Torque Specifications - Vehicles With Aluminum Pedal Pad
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
