Notes
Removal And Installation: Notes
NOTE:
ABS-ECU is located in the hydraulic unit.

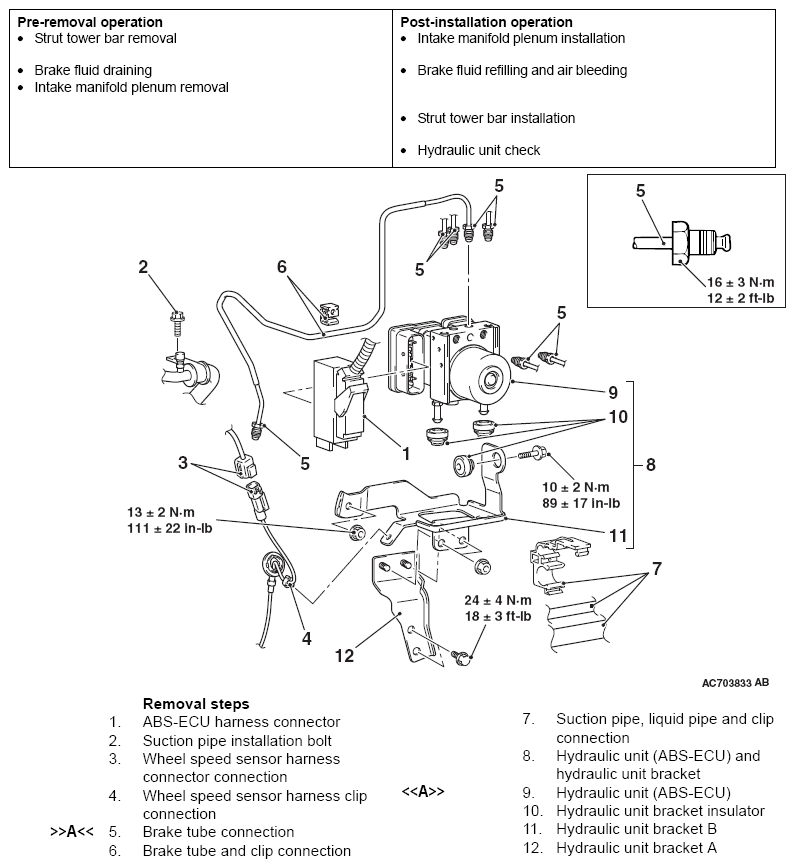

Fig 1: Removing/Installing Hydraulic Unit With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
