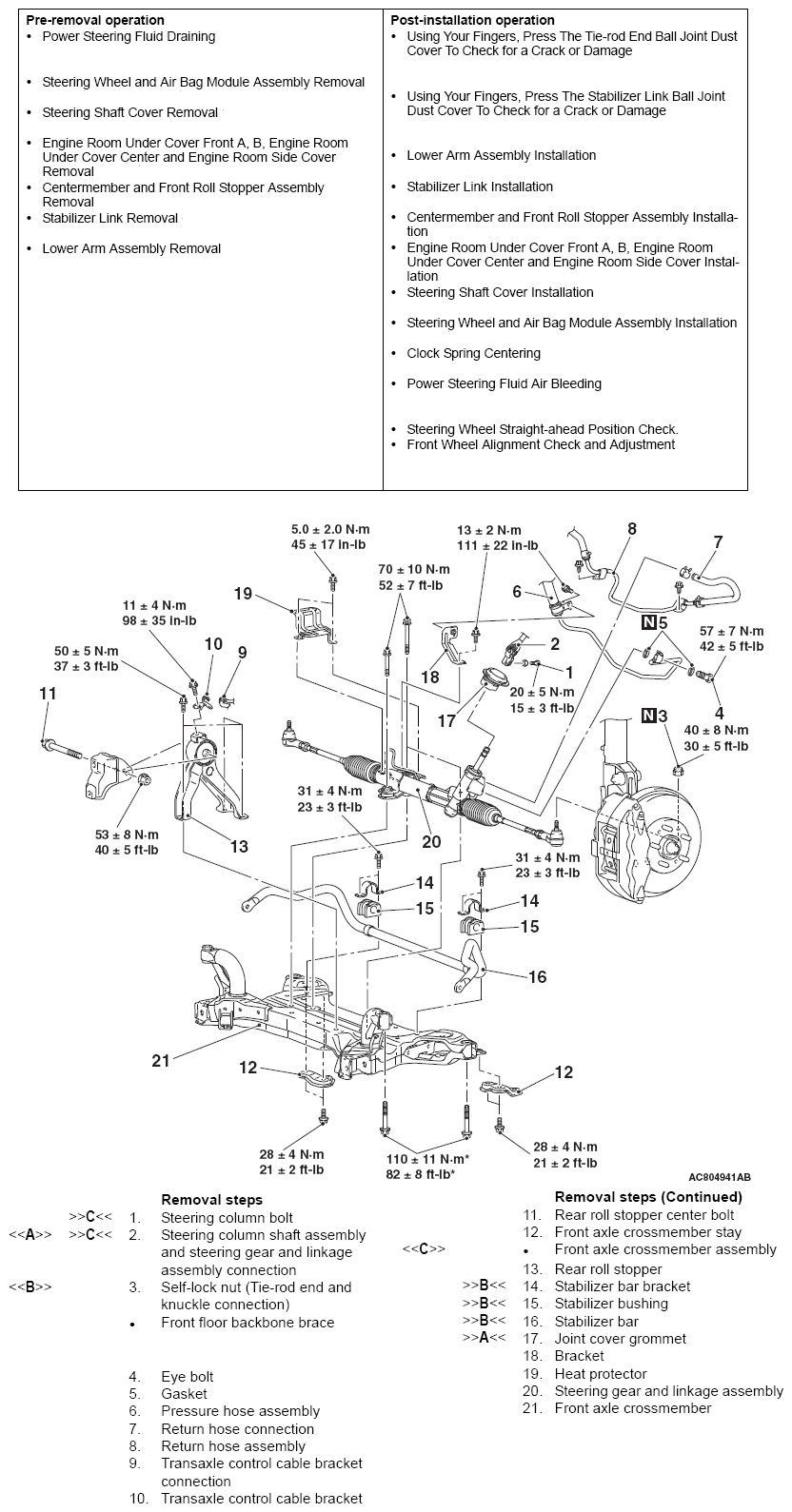

Removal And Installation: Notes
CAUTION:
- Before removing the steering wheel assembly and driver's air bag module assembly, always refer to SERVICE PRECAUTIONS , and AIR BAG MODULE(S) AND CLOCK SPRING . Also, position the front wheels in a straight-ahead direction, and remove the ignition key. If you fail to do this, clock spring for SRS may get damage, making the SRS (air bag) inoperative, and it may cause a serious injury to the driver.
- The parts indicated by * are the bolts/nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
- After installation, perform calibration to make ASC-ECU learn the neutral position of the steering wheel sensor. (Refer to STEERING WHEEL SENSOR CALIBRATION ).
Required Special Tool:
- MB991897 or MB992011: Ball Joint Remover
