Theft-Alarm System

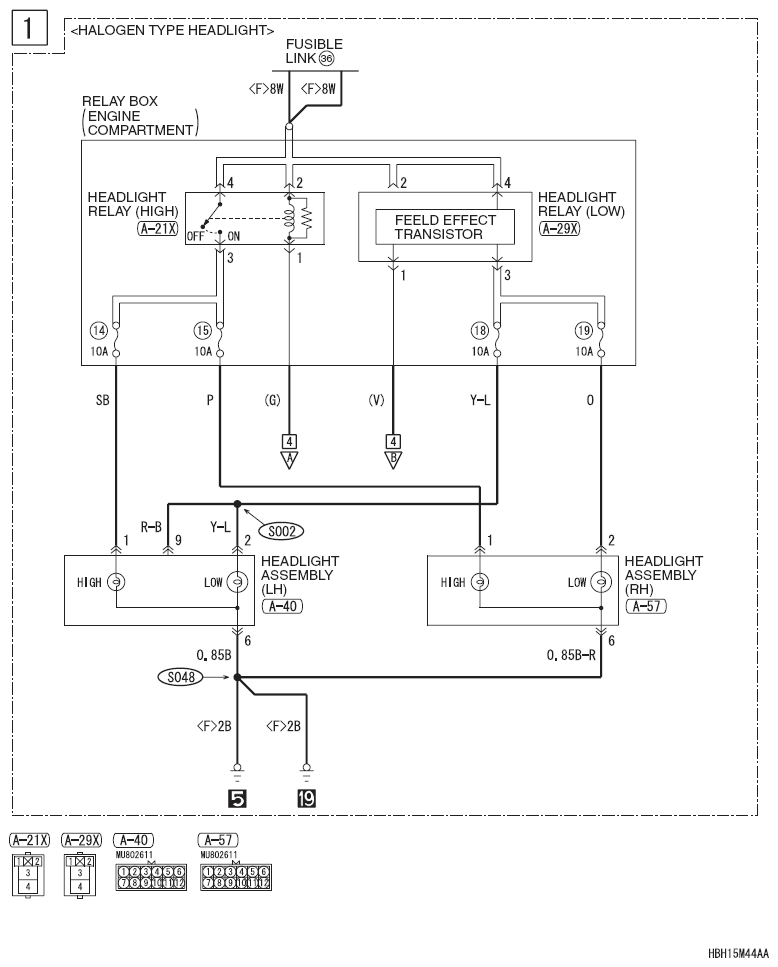

Fig 1: Theft-Alarm System Circuit Diagram (1 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

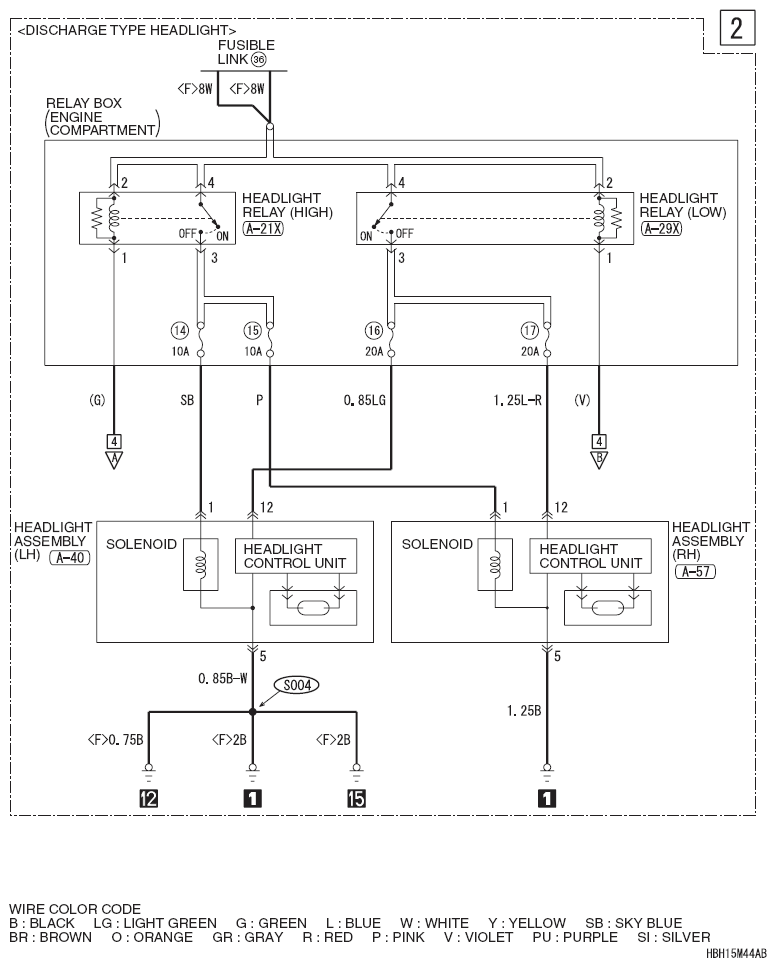

Fig 2: Theft-Alarm System Circuit Diagram (2 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

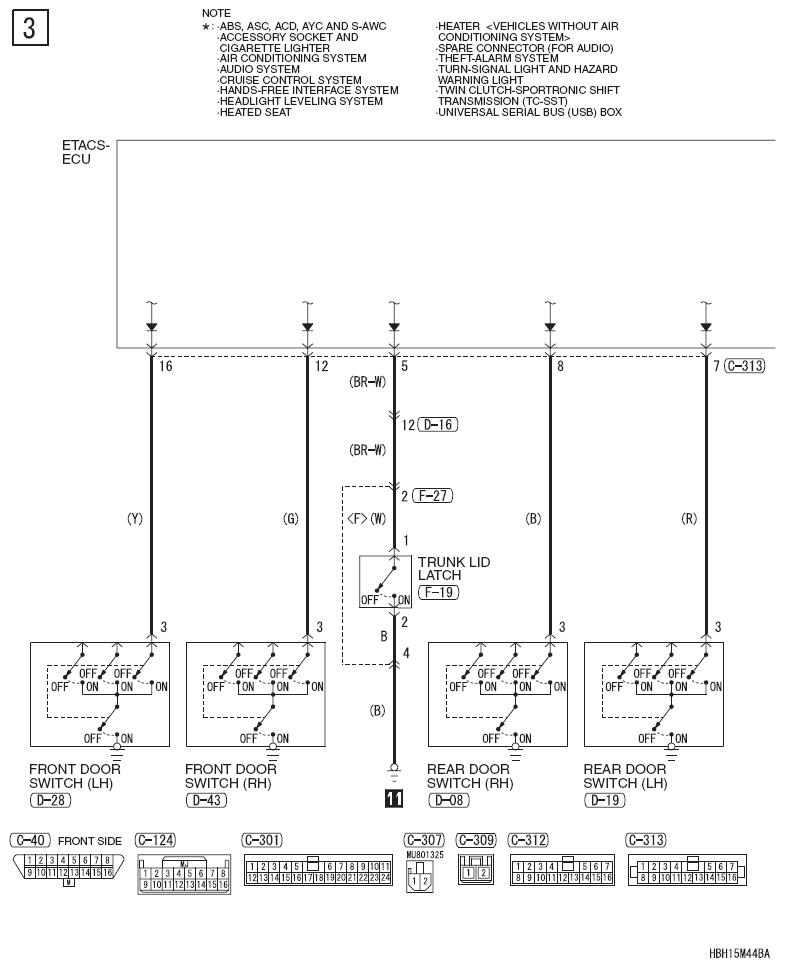

Fig 3: Theft-Alarm System Circuit Diagram (3 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

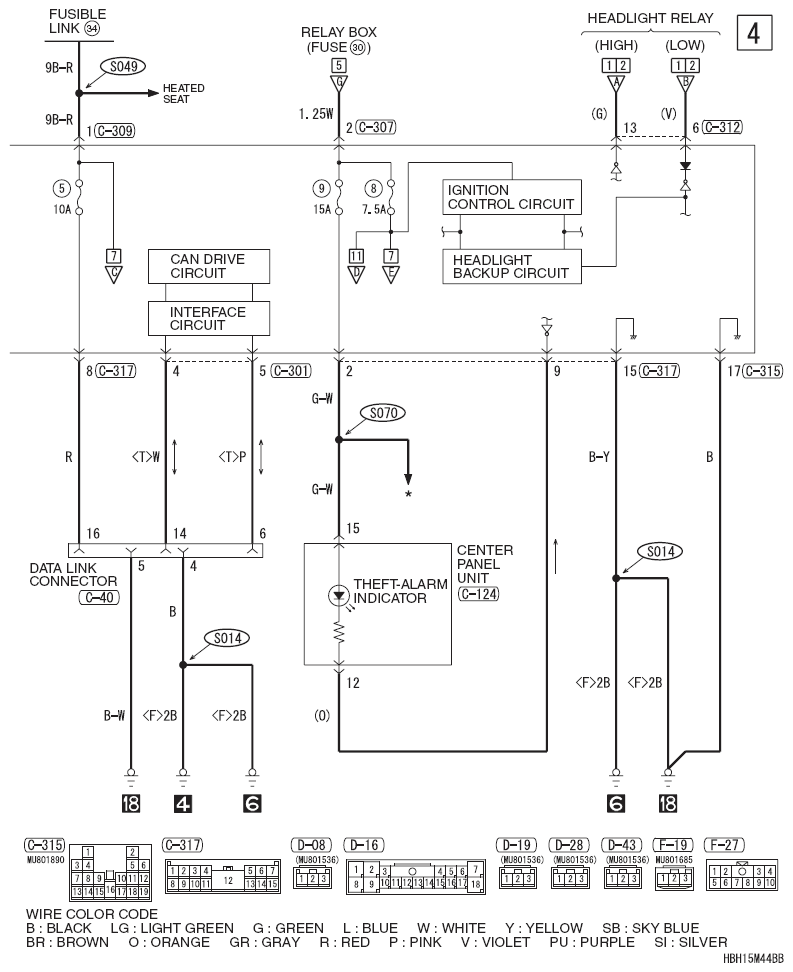

Fig 4: Theft-Alarm System Circuit Diagram (4 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

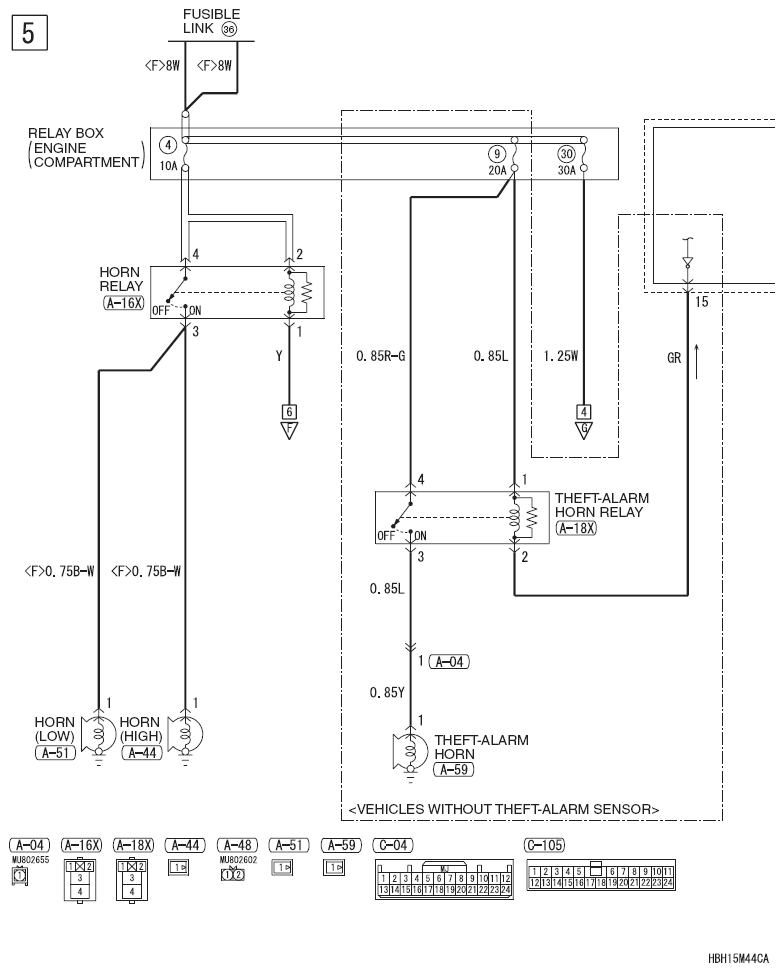

Fig 5: Theft-Alarm System Circuit Diagram (5 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Theft-Alarm System Circuit Diagram (6 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

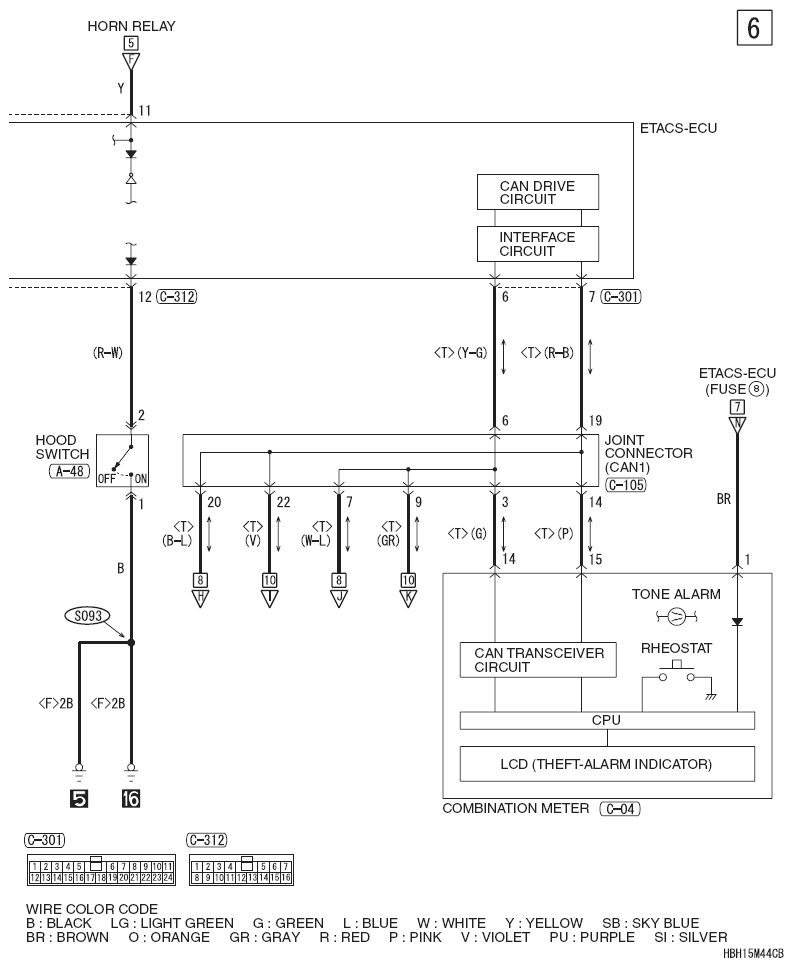

Fig 7: Theft-Alarm System Circuit Diagram (7 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

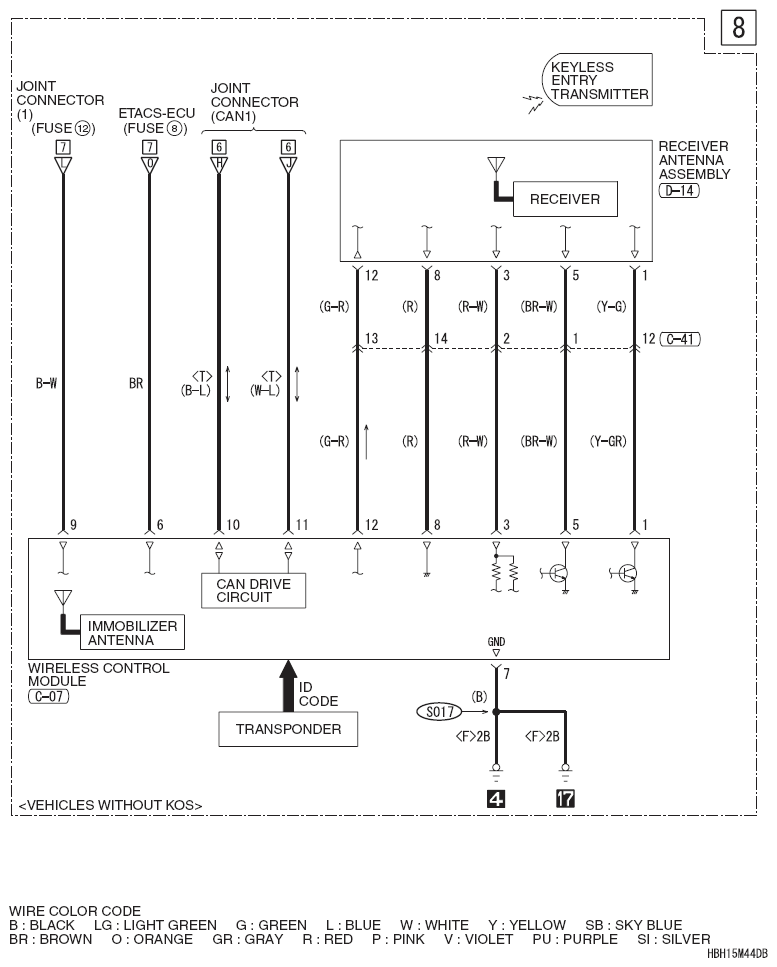

Fig 8: Theft-Alarm System Circuit Diagram (8 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

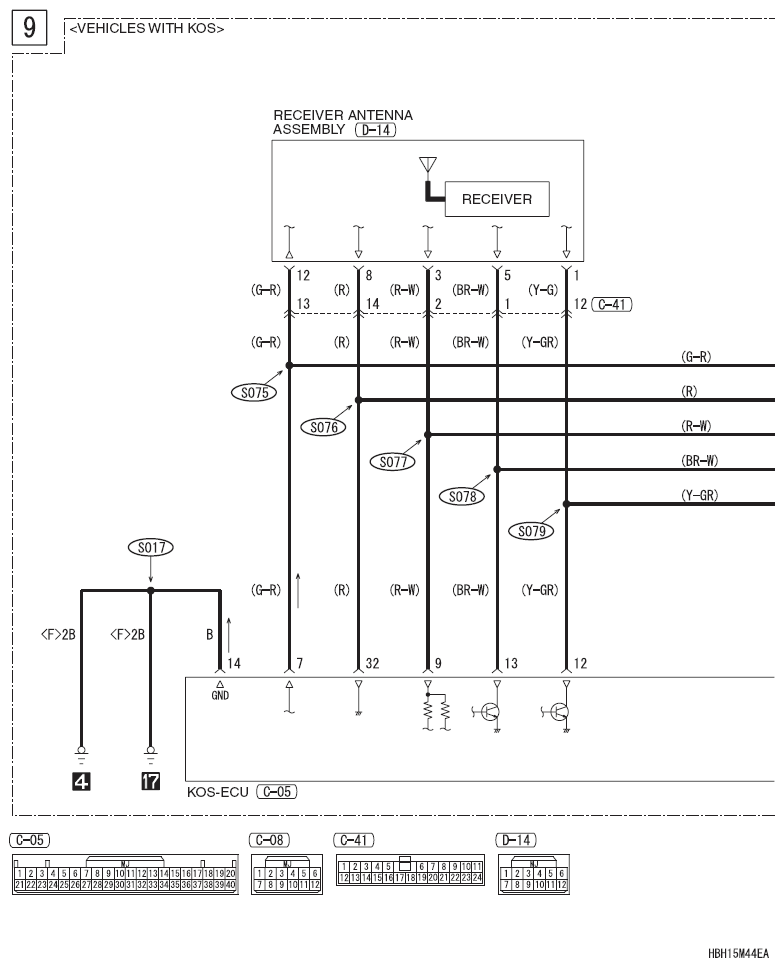

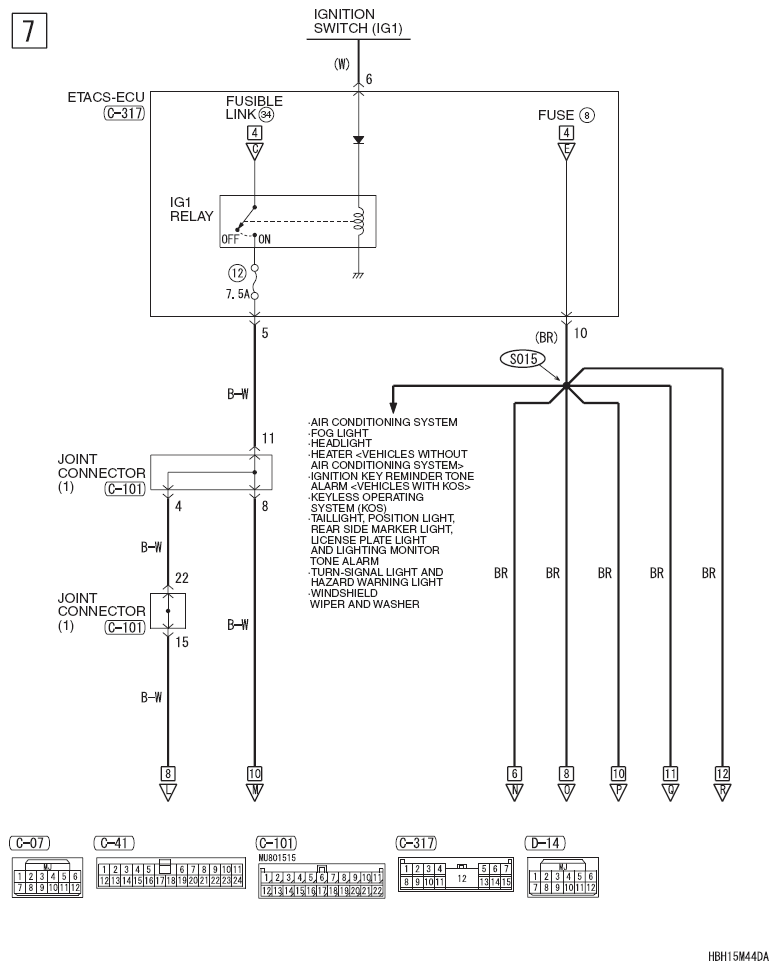

Fig 9: Theft-Alarm System Circuit Diagram (9 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

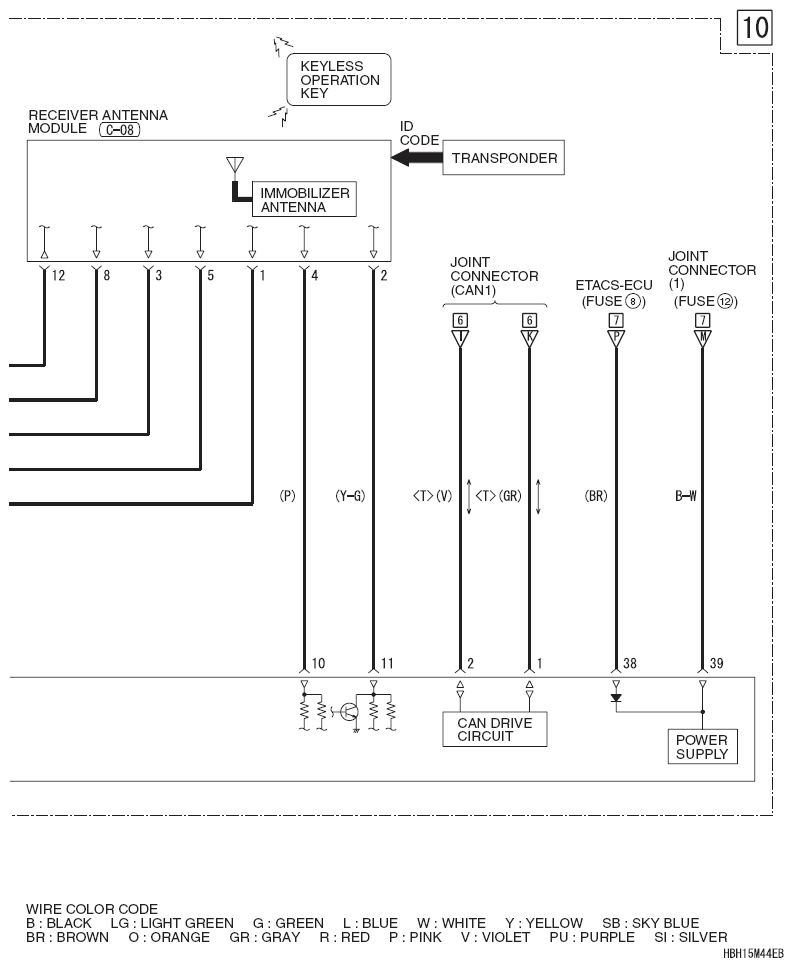

Fig 10: Theft-Alarm System Circuit Diagram (10 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

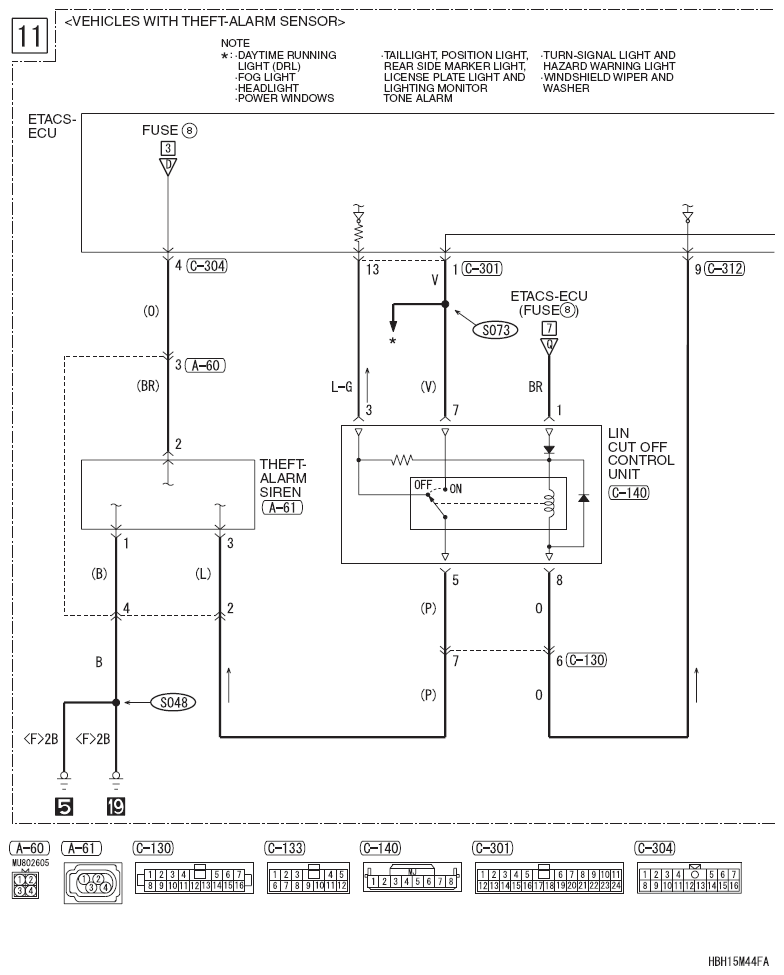

Fig 11: Theft-Alarm System Circuit Diagram (11 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

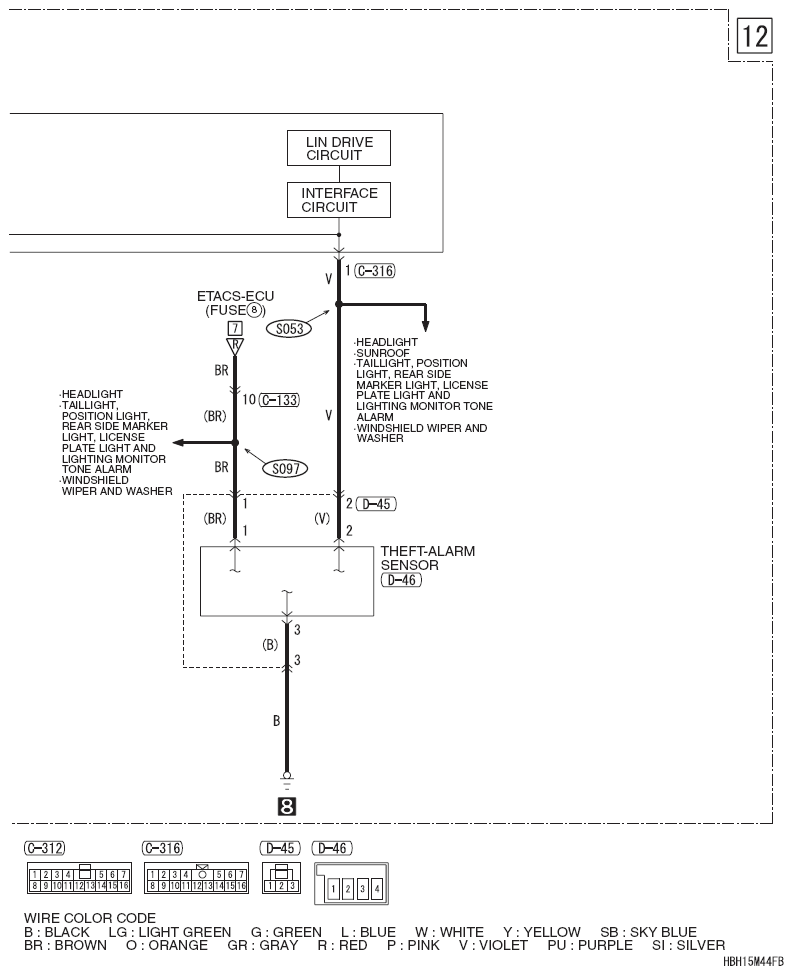

Fig 12: Theft-Alarm System Circuit Diagram (12 Of 12)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
