OEM Circuit Diagrams - Lancer Evolution: Stoplight

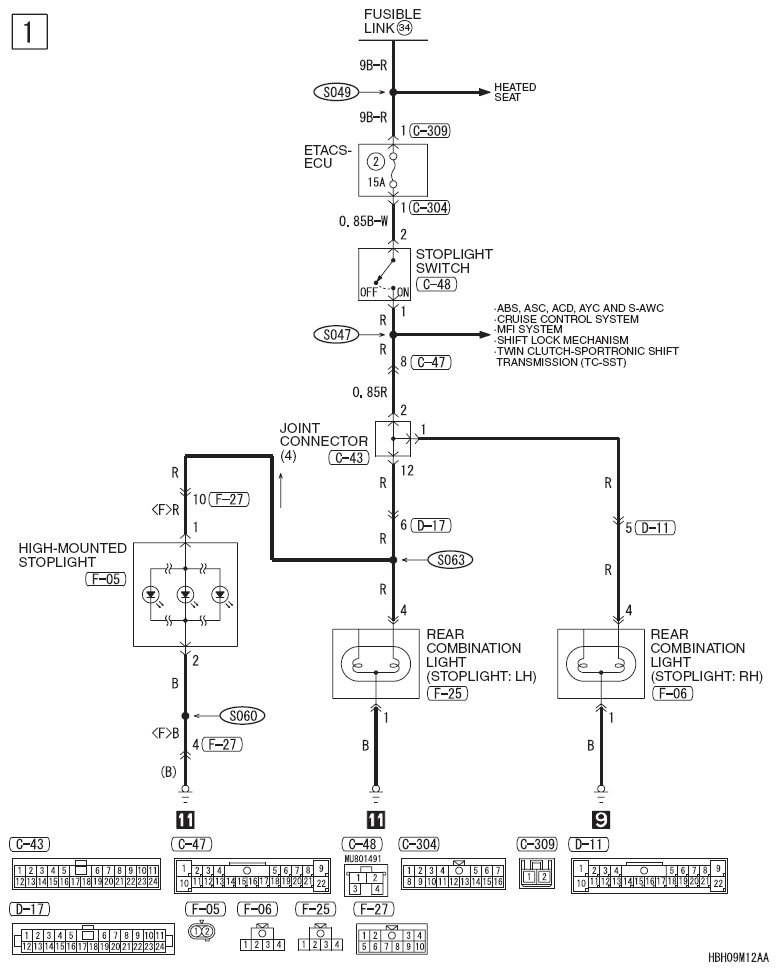

Fig 1: Stoplight Circuit Diagram

G07055314

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
