Spare Connector (For Navigation System)

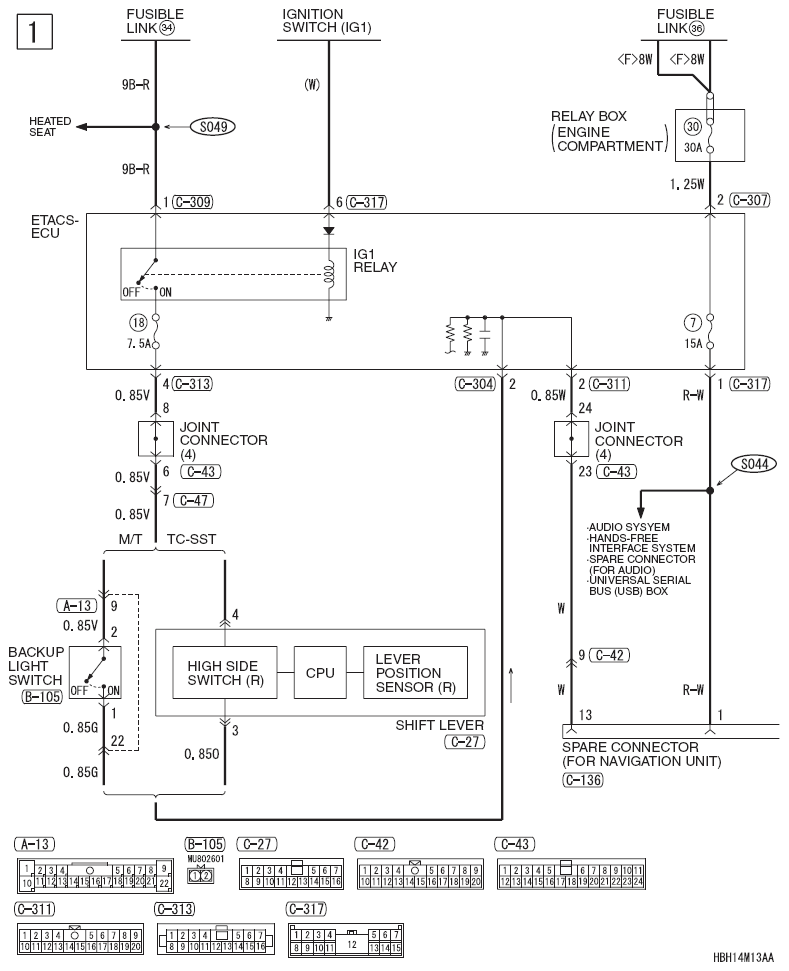

Fig 1: Spare Connector (For Navigation System) Circuit Diagram (1 Of 2)
G07055426Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

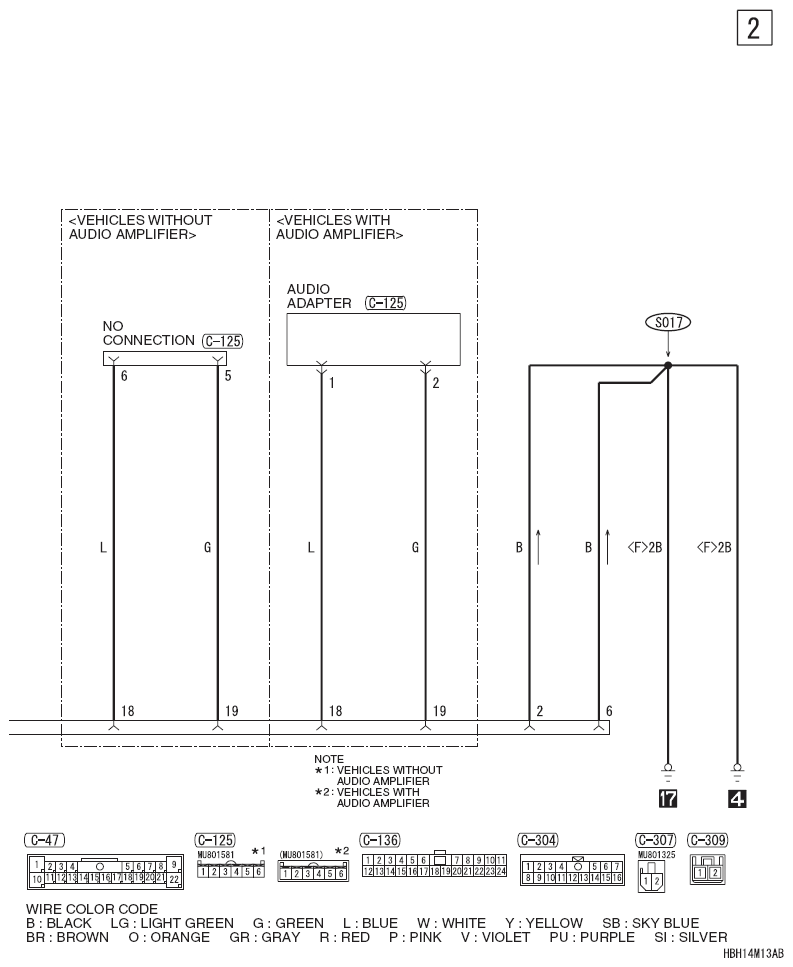

Fig 2: Spare Connector (For Navigation System) Circuit Diagram (2 Of 2)
G07055427Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
