Spare Connector (For Hands-Free Interface System)

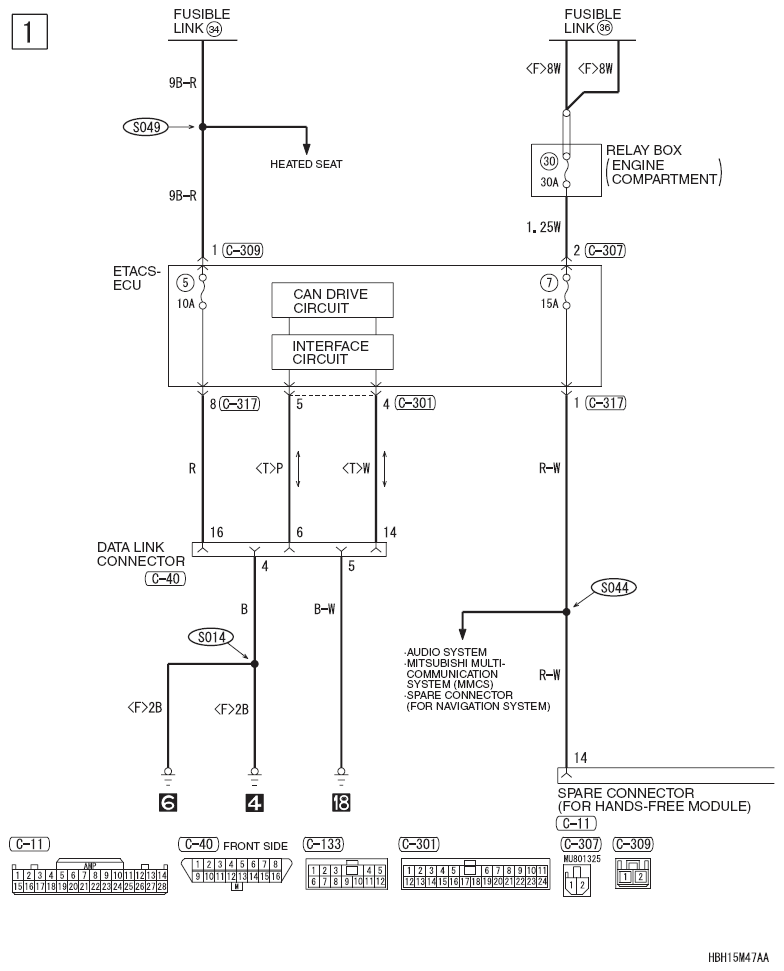

Fig 1: Spare Connector (For Hands-Free Interface System) Circuit Diagram (1 Of 4)
G07055526Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

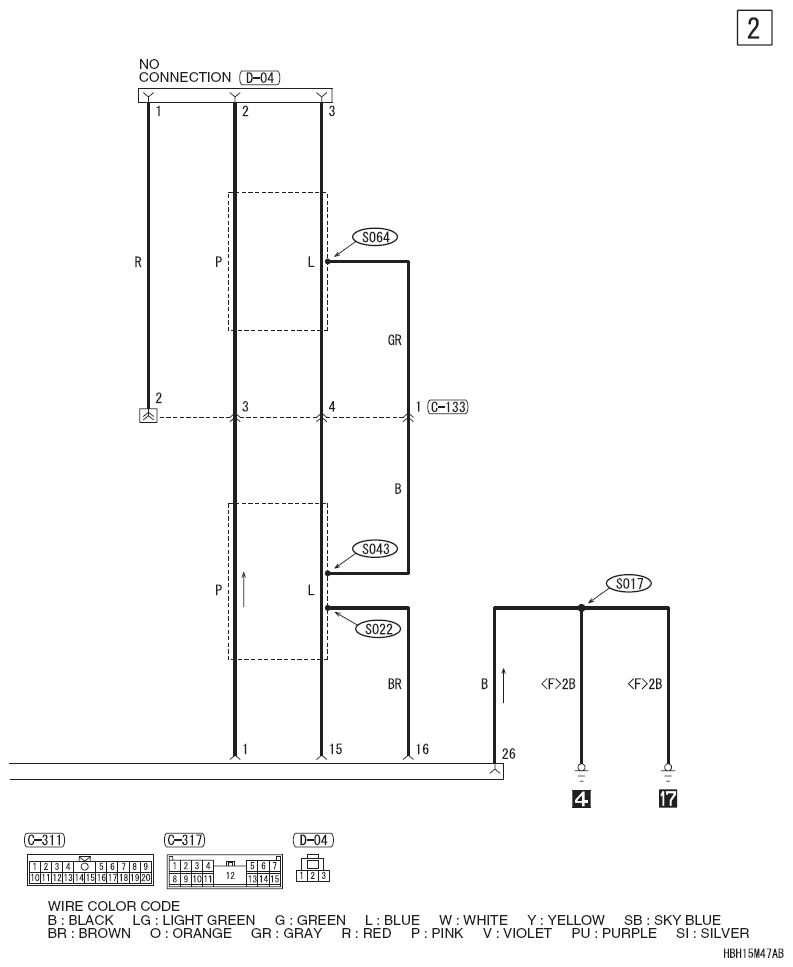

Fig 2: Spare Connector (For Hands-Free Interface System) Circuit Diagram (2 Of 4)
G07055527Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

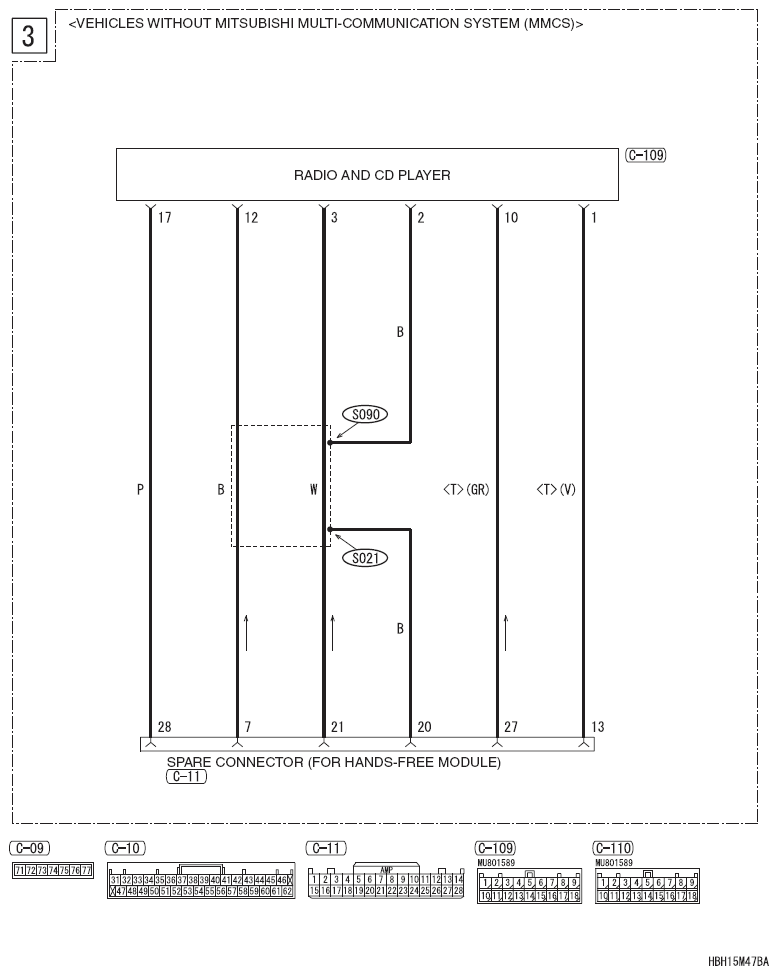

Fig 3: Spare Connector (For Hands-Free Interface System) Circuit Diagram (3 Of 4)
G07055528Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

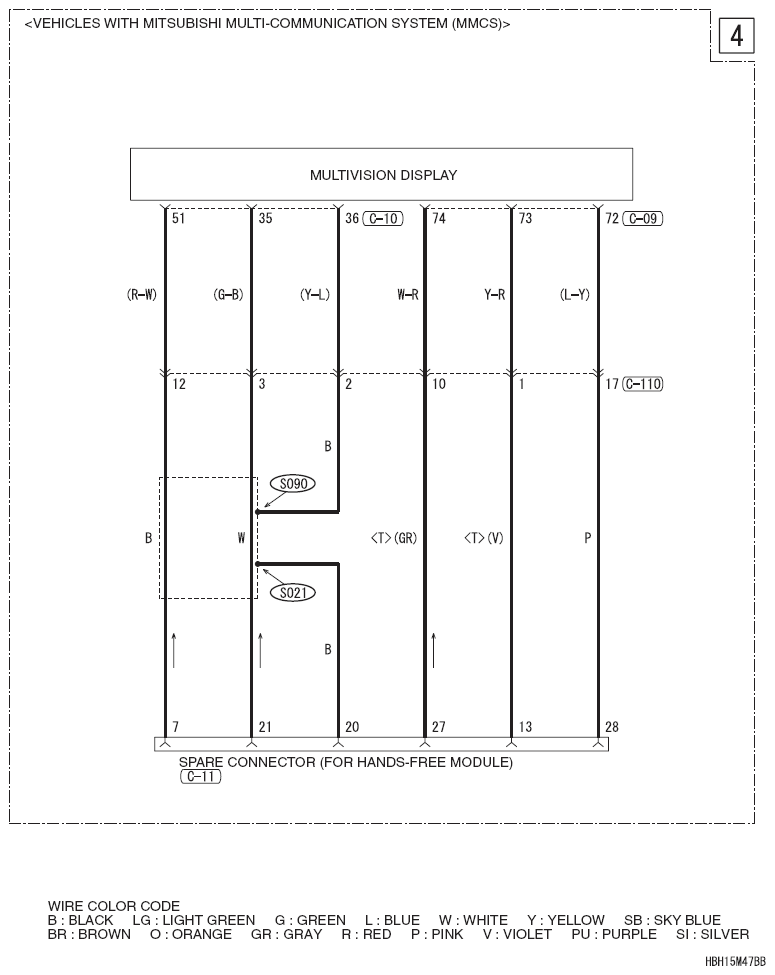

Fig 4: Spare Connector (For Hands-Free Interface System) Circuit Diagram (4 Of 4)
G07055529Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
