Shift Lock Mechanism
Shift Lock Mechanism

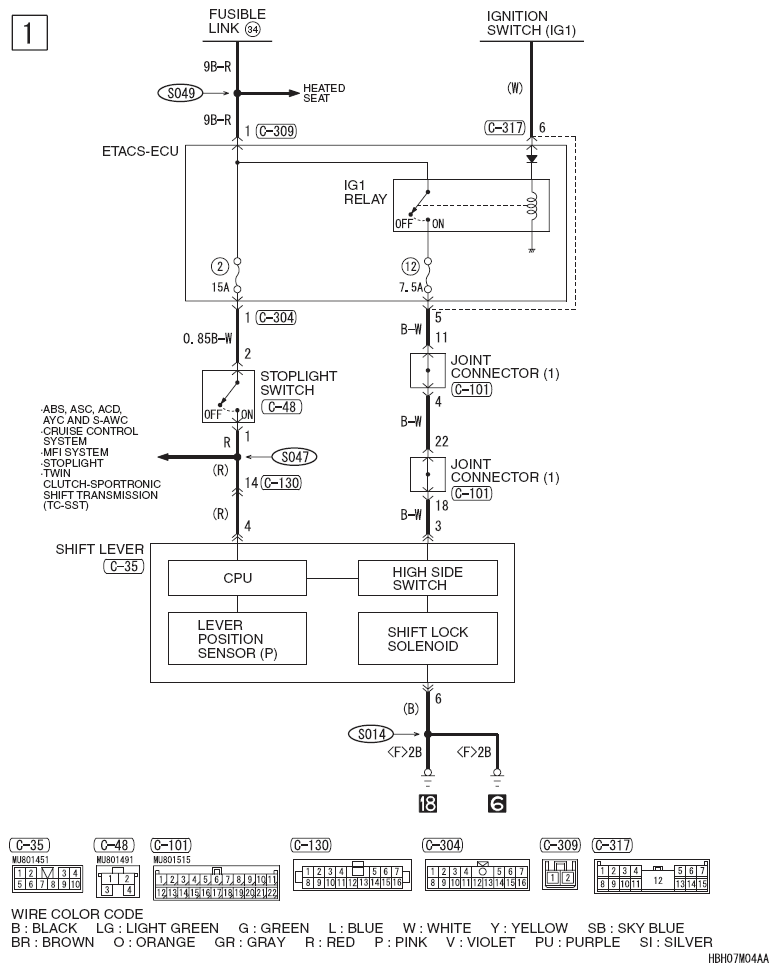

Fig 1: Shift Lock Mechanism Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
