Keyless Operating System (Kos)

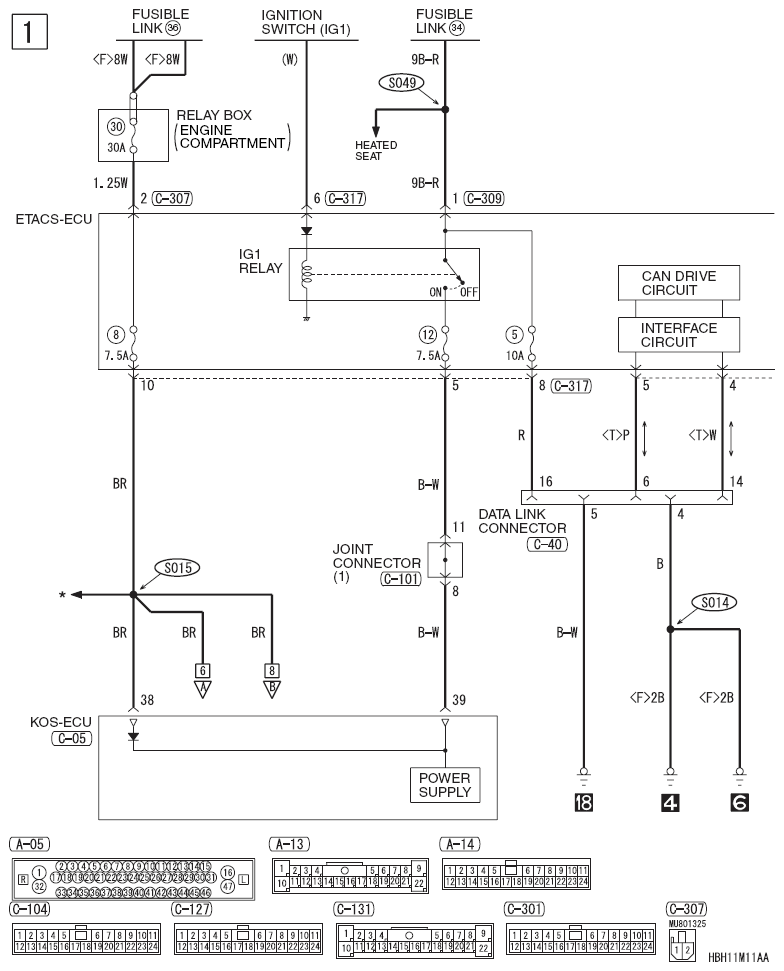

Fig 1: Keyless Operating System Circuit Diagram (1 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

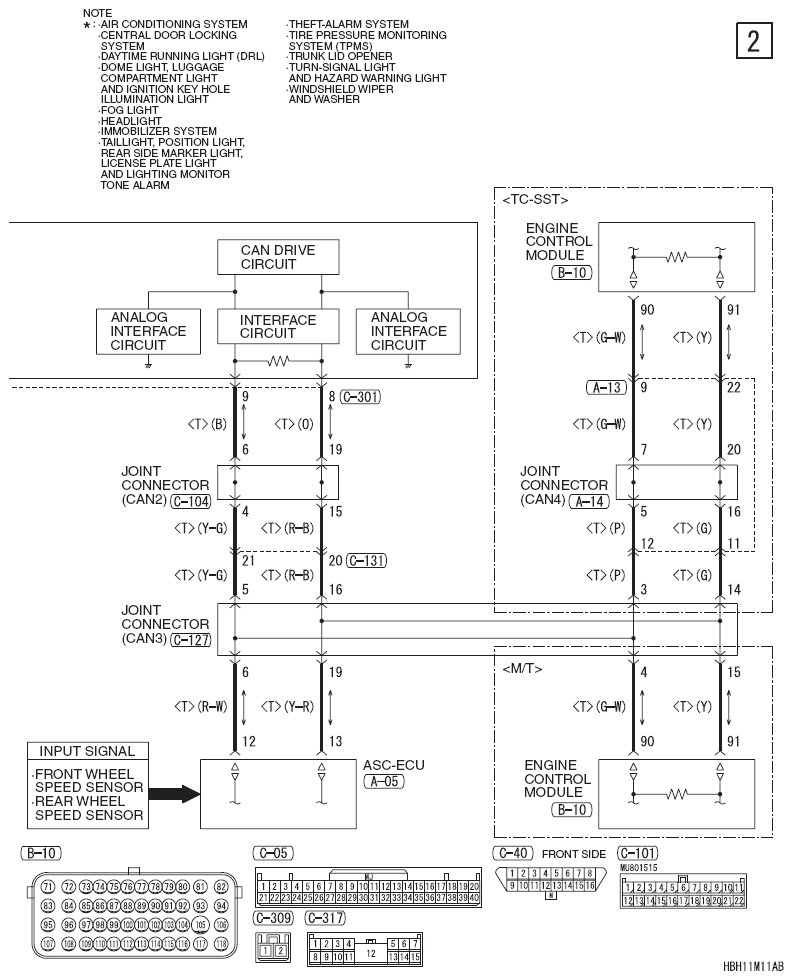

Fig 2: Keyless Operating System Circuit Diagram (2 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

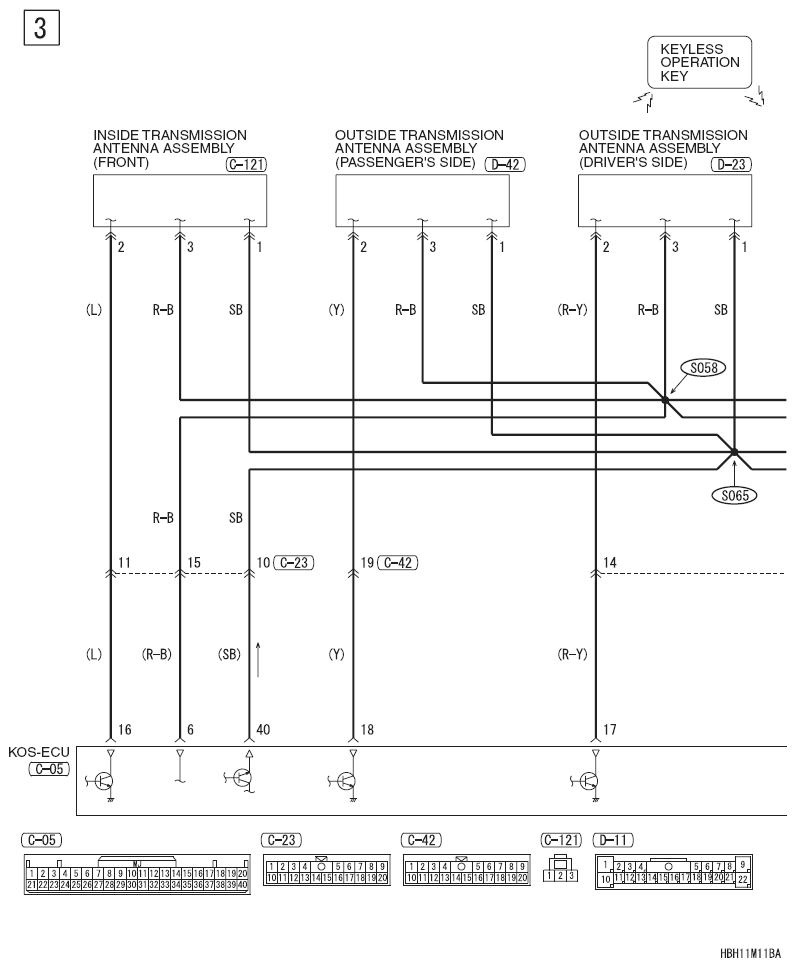

Fig 3: Keyless Operating System Circuit Diagram (3 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

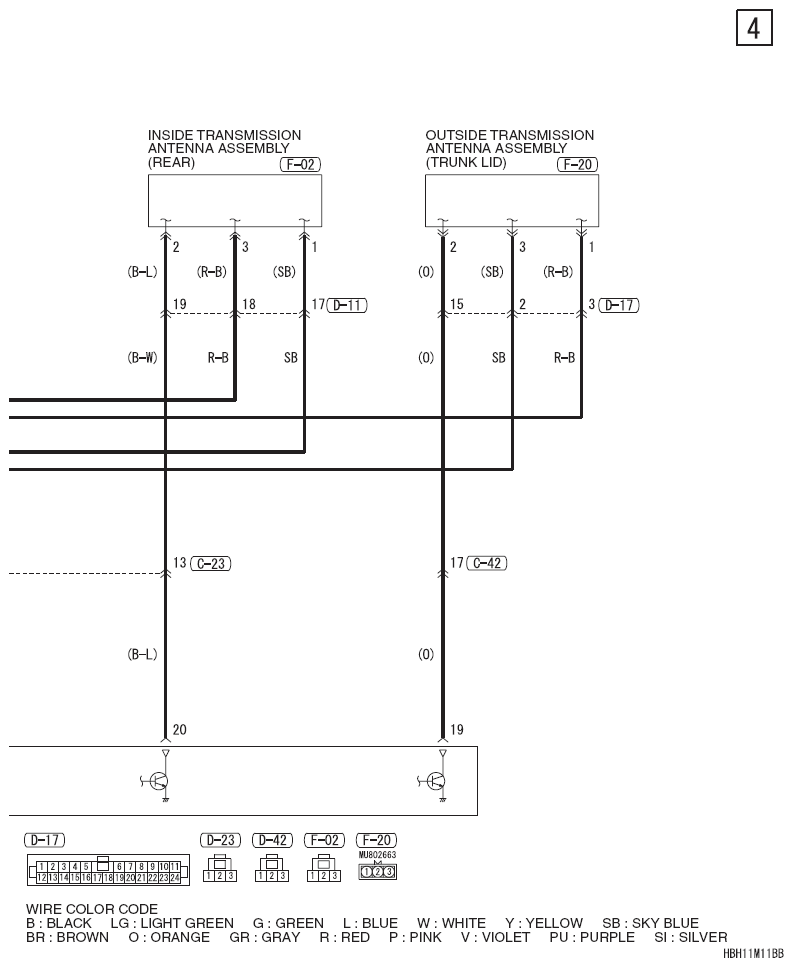

Fig 4: Keyless Operating System Circuit Diagram (4 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

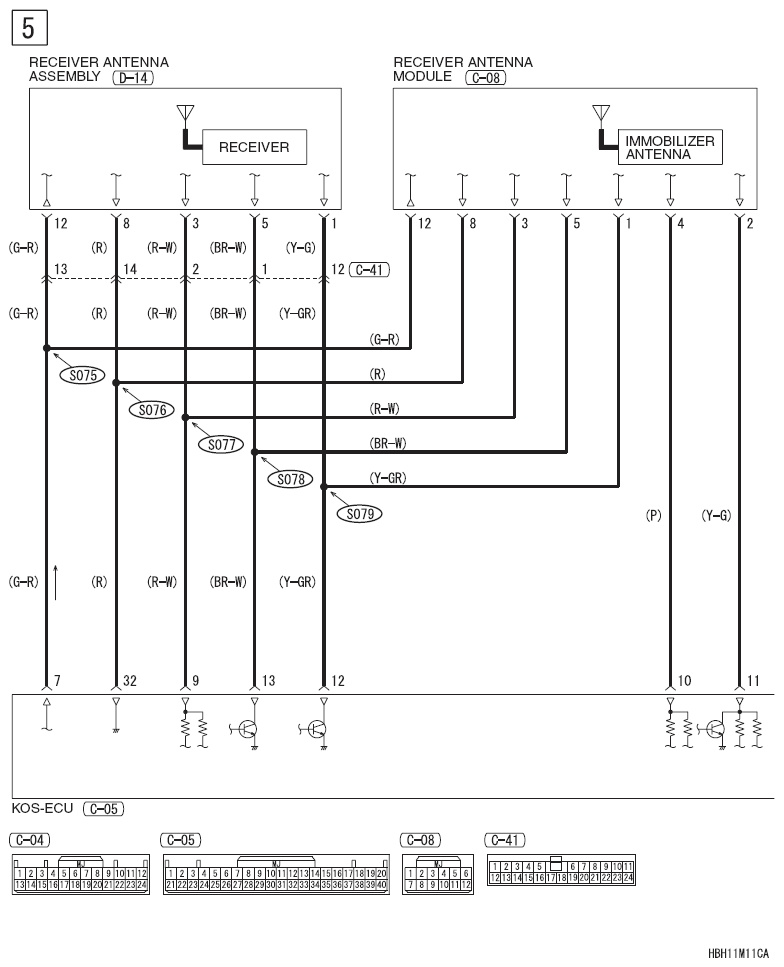

Fig 5: Keyless Operating System Circuit Diagram (5 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

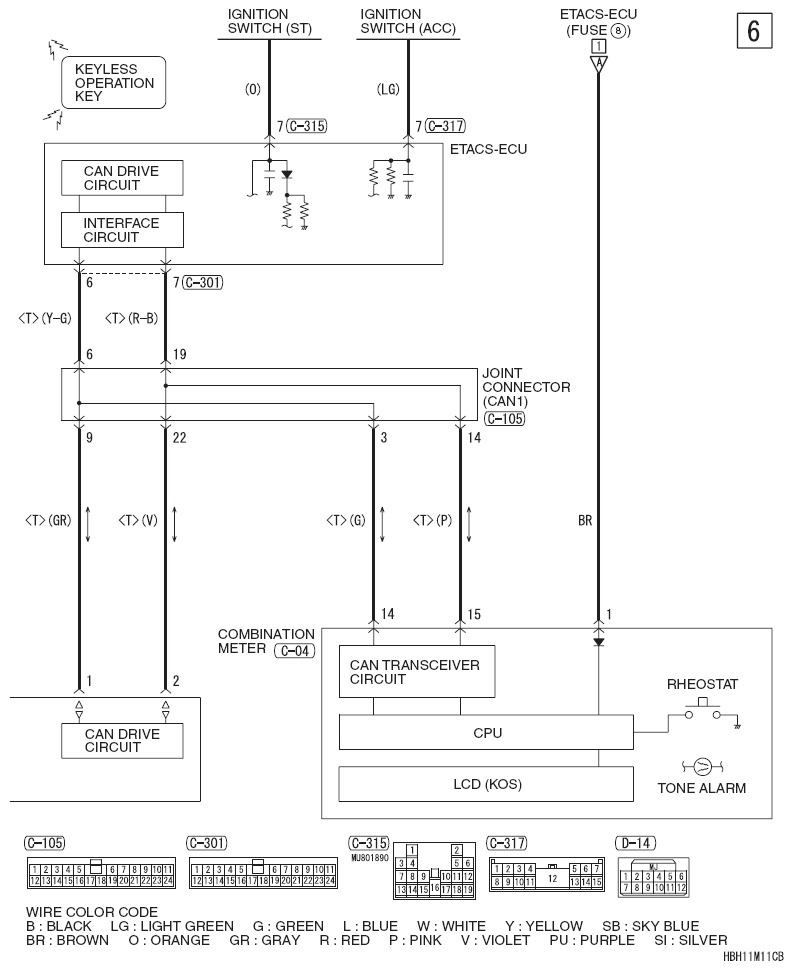

Fig 6: Keyless Operating System Circuit Diagram (6 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

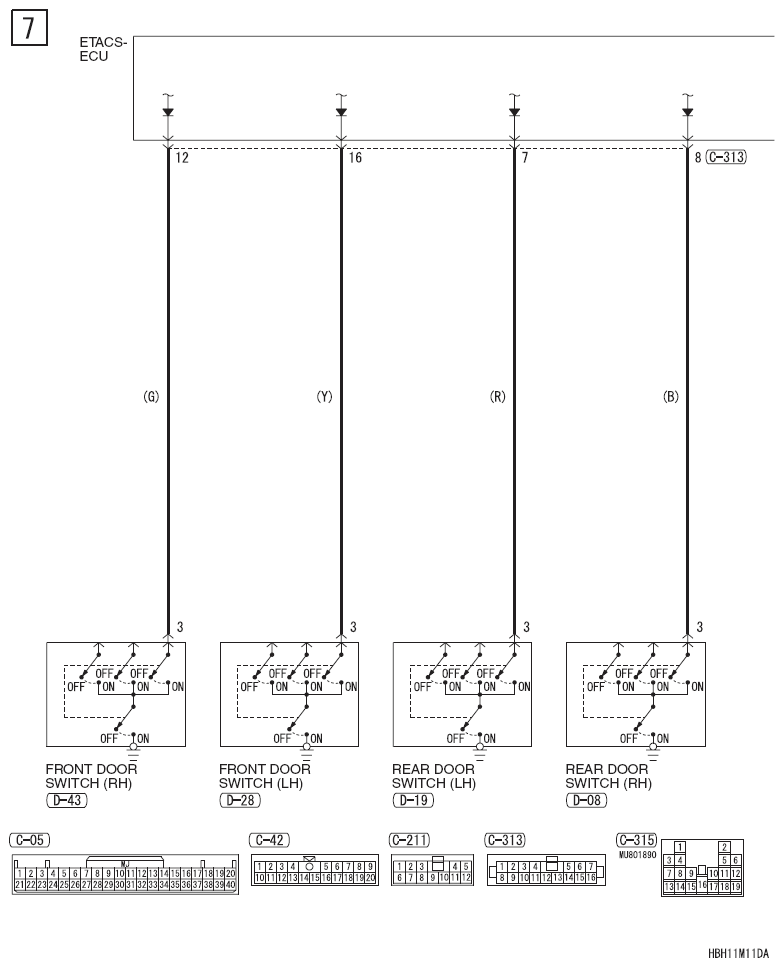

Fig 7: Keyless Operating System Circuit Diagram (7 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

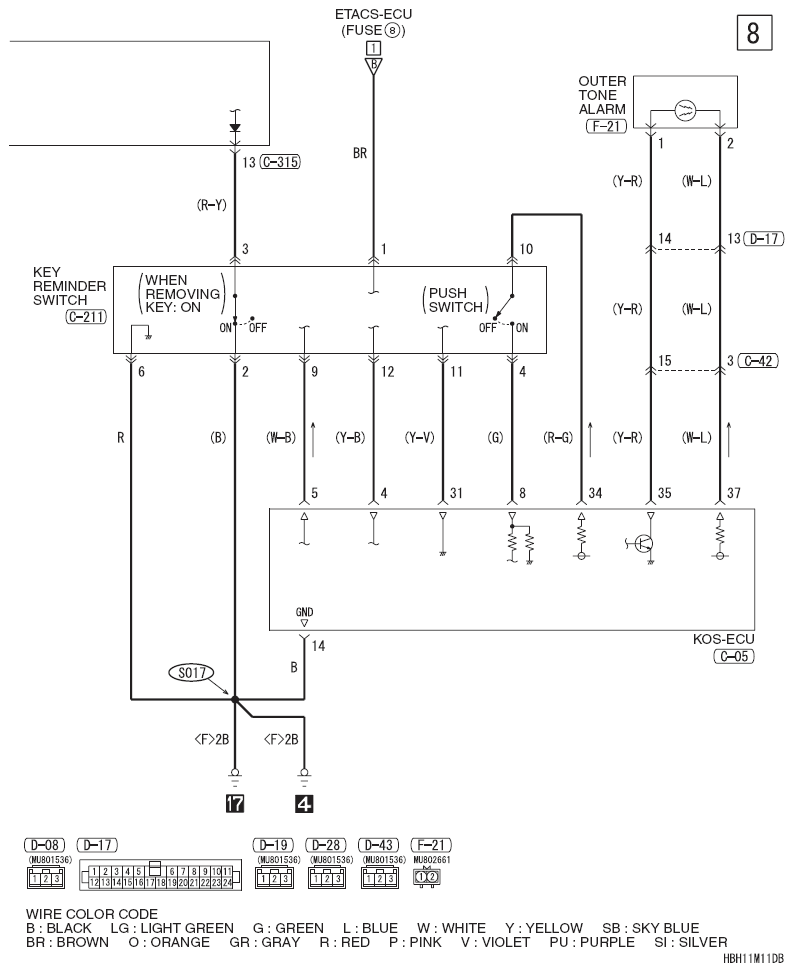

Fig 8: Keyless Operating System Circuit Diagram (8 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

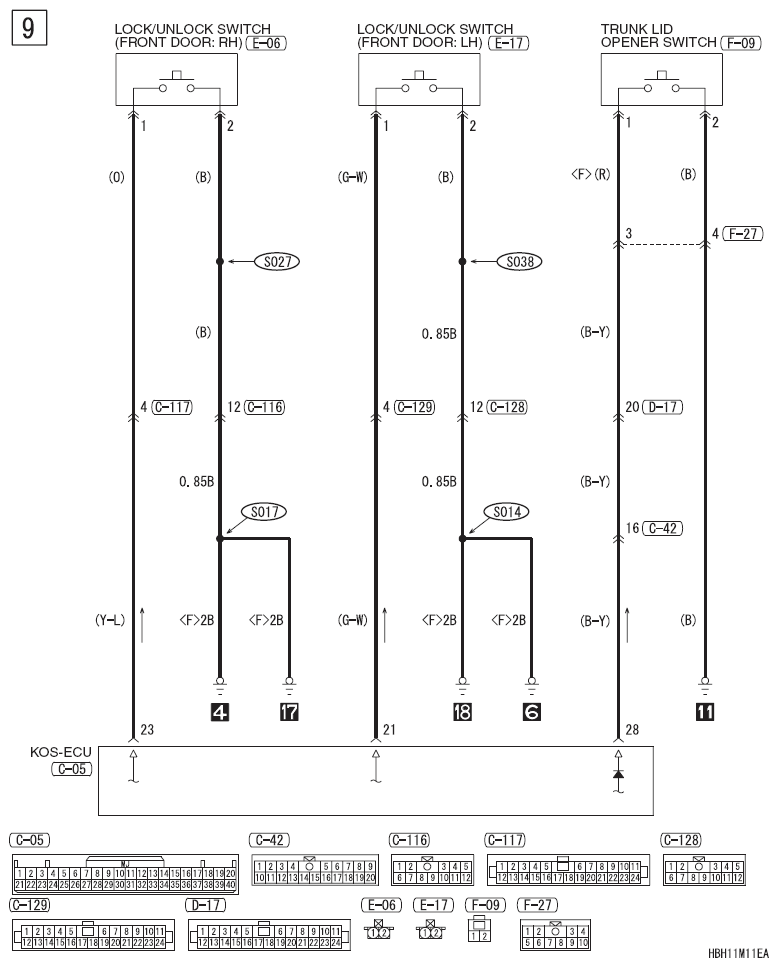

Fig 9: Keyless Operating System Circuit Diagram (9 Of 9)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
