Inspection Procedure 12: Keyless entry system does not work: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

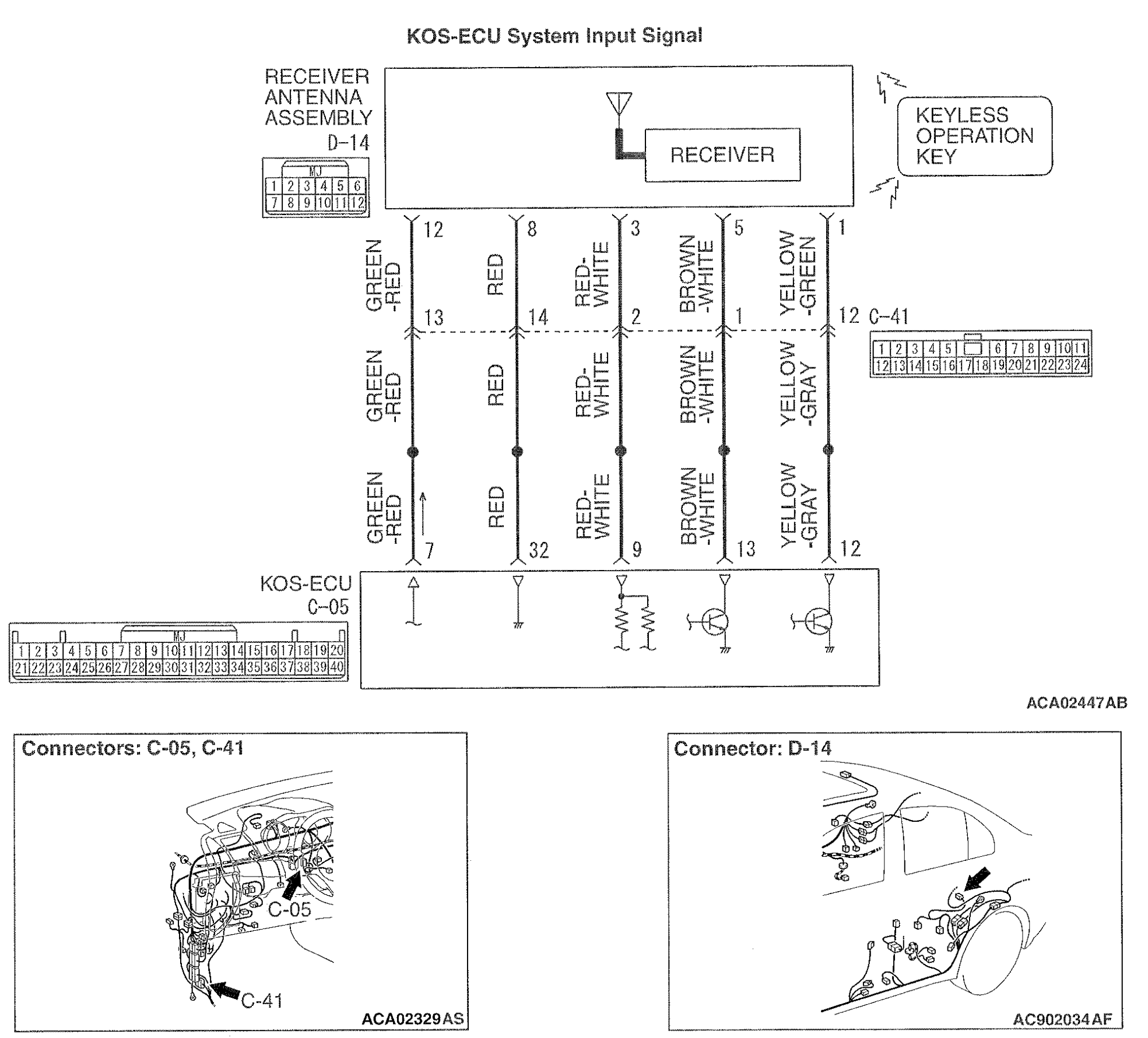

Fig 1: KOS-ECU System Input Signal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
