Manual Transaxle On-Vehicle Service - Lancer Evolution
>>
AWC-Ecu
>>
Removal And Installation
Removal And Installation

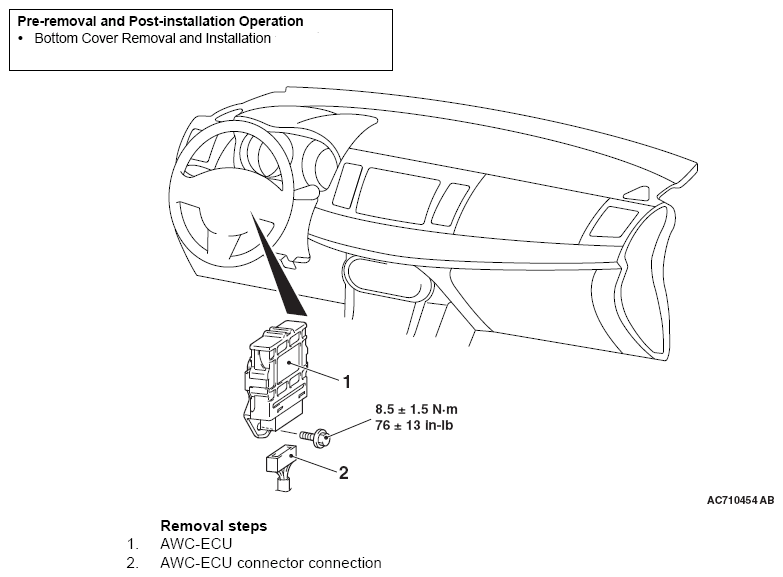

Fig 1: Removal/Installation Of AWC-ECU And AWC-ECU Connector Connection With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
