Home >> Mitsubishi >> 2011 >> Lancer Evolution GSR >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> USB Box - Lancer Evolution >> Symptom Procedures >> The USB adapter data cannot be replayed. < Vehicles with MMCS > >> Notes

The USB adapter data cannot be replayed. < Vehicles with MMCS >: Notes

CAUTION: Before replacing the USB box, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

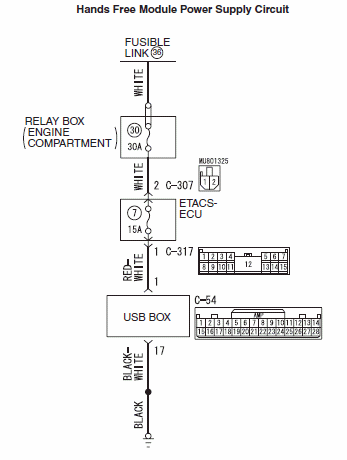

Fig 1: Hands Free Module Power Supply Circuit
G00516480Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: USB Box Communication Circuit
G00516485Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: USB Box Communication Circuit Connector Locations
G00516486Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
