Home >> Mitsubishi >> 2011 >> Lancer ES, 4D Hatchback, Standard >> Repair and Diagnosis >> Steering >> Power Steering - Except Lancer Evolution >> Power Steering Gear Box And Linkage >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

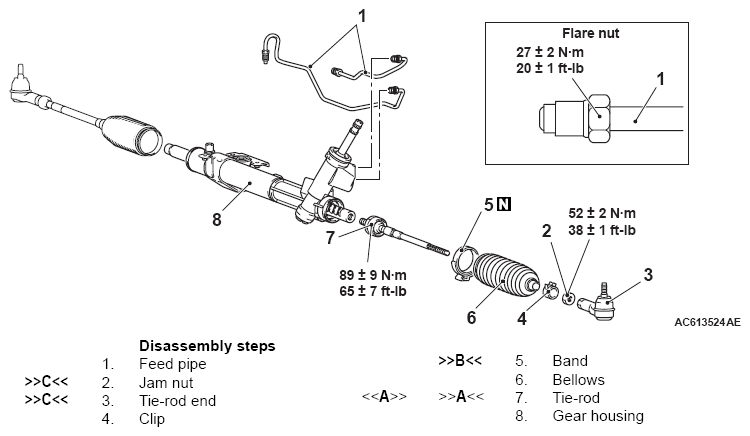

Fig 1: Disassembled View Of Power Steering Gear With Torque Specifications
G07032713Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
