Removal And Installation (2.0L Engine Non-Turbo, 2.4L Engine): Notes

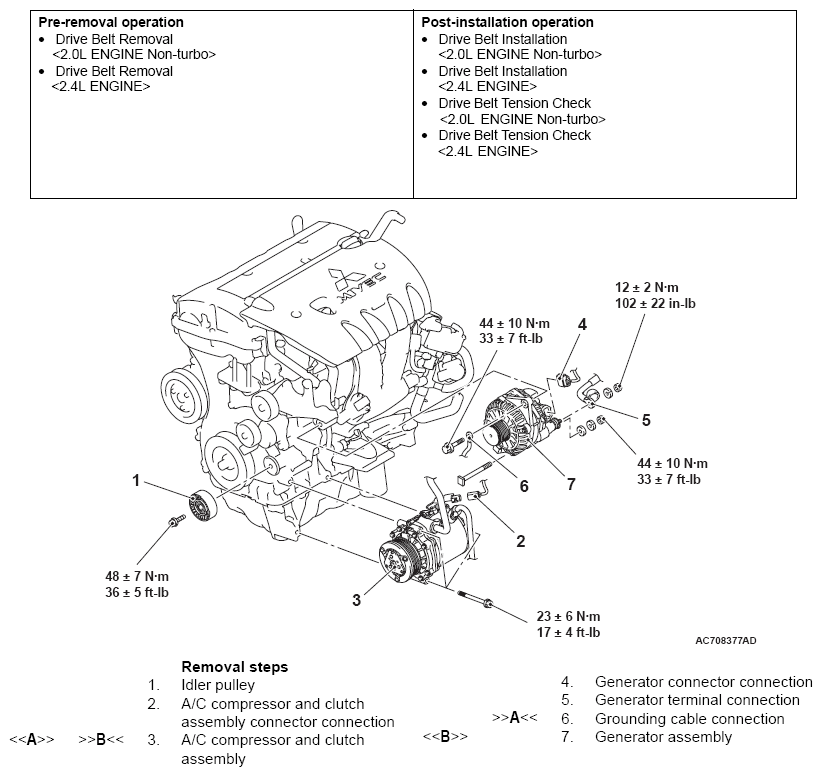

Fig 1: Removing/Installing Generator Assembly With Torque Specifications (2.0L Engine Non-Turbo, 2.4L Engine)
G07033880Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
