Inspection Procedure 1: TCM cannot communication with scan tool: Notes

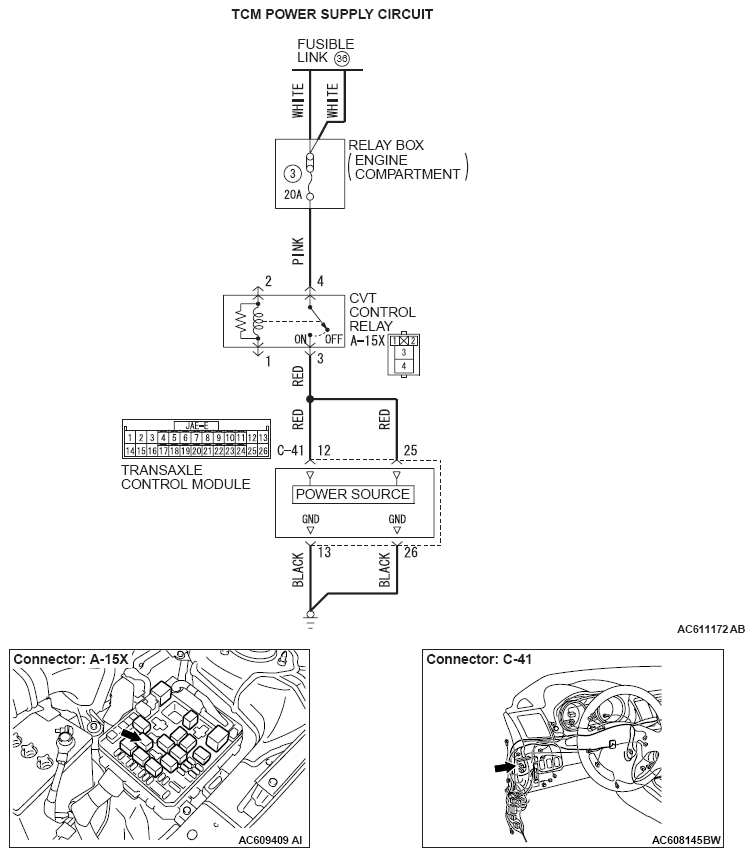

Fig 1: TCM Power Supply Circuit Diagram

G07029321

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
