DTC P0826: Malfunction of Shift Switch Assembly: Notes

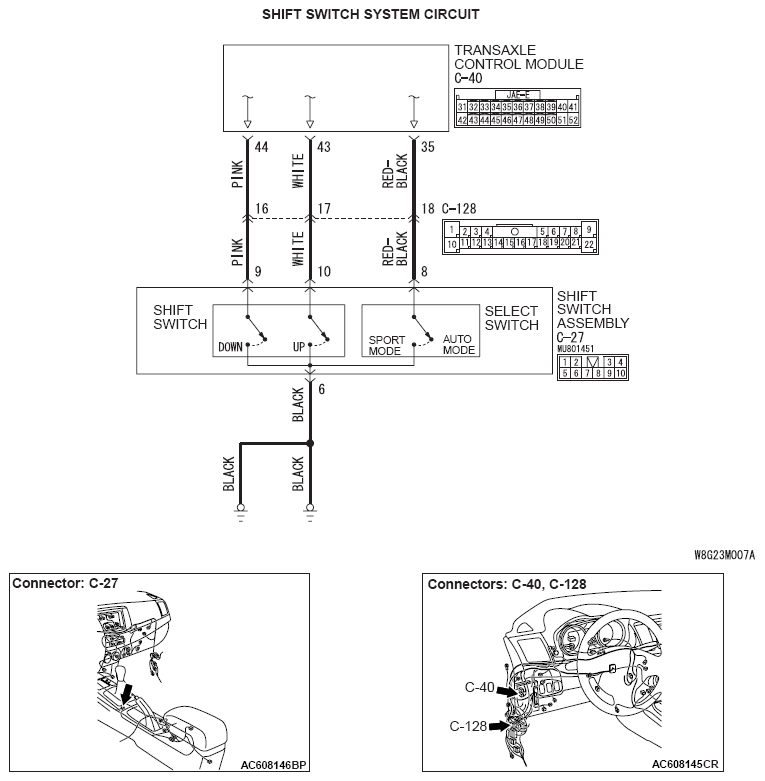

Fig 1: Shift Switch System Circuit Diagram

G07029304

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
