Removal And Installation: Notes

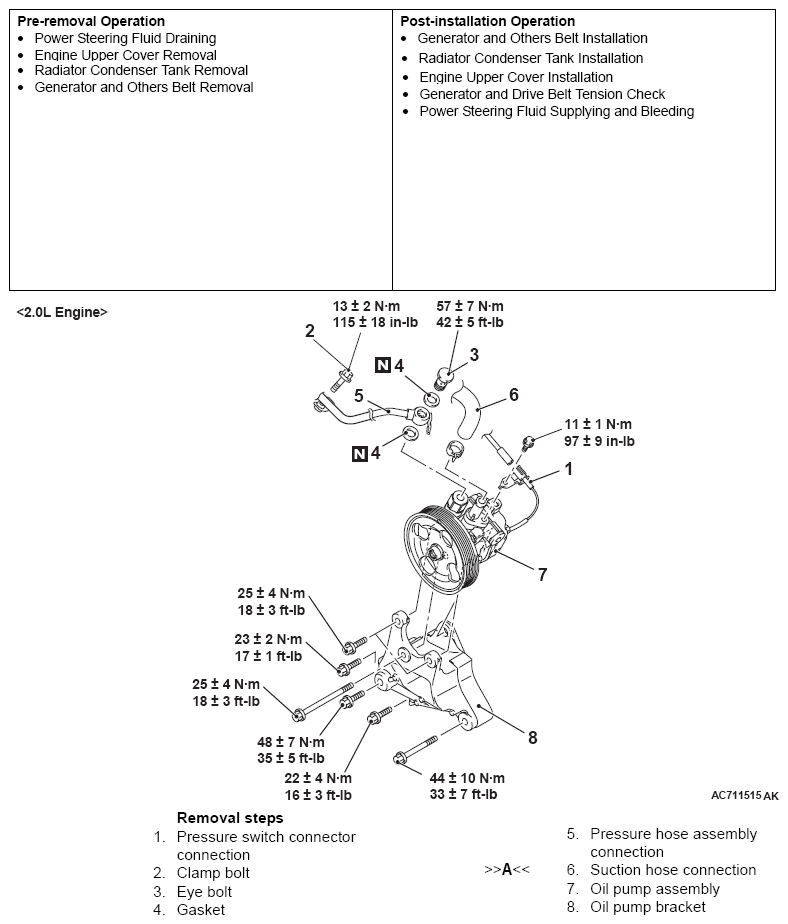

Fig 1: Exploded View Of Power Steering Oil Pump Assembly With Torque Specifications (2.0L Engine)
G07032721Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

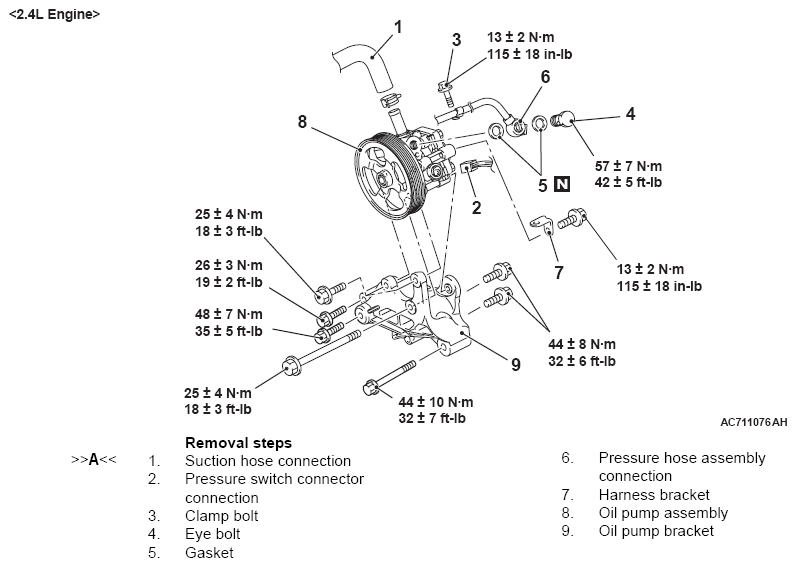

Fig 2: Exploded View Of Power Steering Oil Pump Assembly With Torque Specifications (2.4L Engine)
G07032722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
