2.0L Engine (Turbo)
Vehicles for RALLIART
ITEM SPECIFICATION
| Item | RALLIART | |||
|---|---|---|---|---|
| CX4AL | ||||
| MUFZL2M/MUFZL3M | ||||

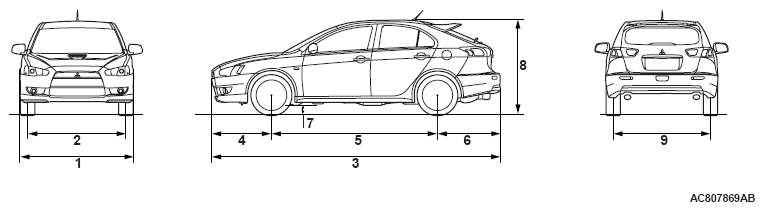

| Vehicle dimension mm (in) | Overall width | 1 | 1,760 (69.4) | |
| Tread-front | 2 | 1,530 (60.2) | ||
| Overall length | 3 | 4,585 (180.4) | ||
| Overhang-front | 4 | 955 (37.6) | ||
| Wheelbase | 5 | 2,635 (103.7) | ||
| Overhang-rear | 6 | 995 (39.1) | ||
| Ground clearance | 7 | 147 (5.8) | ||
| Overall height (unladen) | 8 | 1,515 (59.7) | ||
| Tread-rear | 9 | 1,530 (60.2) | ||
| Vehicle weight kg (lb) | Curb weight | Without full optional parts | 1,620 (3,572) | |
| With full optional parts | 1,652 (3,643) | |||
| Gross vehicle weight rating | 2,045 (4,509) | |||
| Gross axle weight rating-front | 1,080 (2,381) | |||
| Gross axle weight rating-rear | 1,015 (2,238) | |||
| Seating capacity | 5 | |||
| Engine | Model code | 4B11 | ||
| Type | DOHC MIVEC with charge air cooler turbocharger | |||
| Piston displacement cm3 (cu in) | 1,998 (121.9) | |||
| Maximum output kW/r/min (HP/r/min) | 177/6,000 (237/6,000) | |||
| Maximum torque N.m/r/min (ft-lb/r/min) | 343/2,500-4,750 (253/2,500-4,750) | |||
| Fuel system | Fuel supply system | MFI | ||
| Transaxle | Model code | W6DGA | ||
| Type | AWD, TC-SST | |||
| Minimum turning radius m (ft) | 5.0 (16.4) | |||
