INSPECTION PROCEDURE 3: TCL/ASC-ECU power supply supply system: Notes

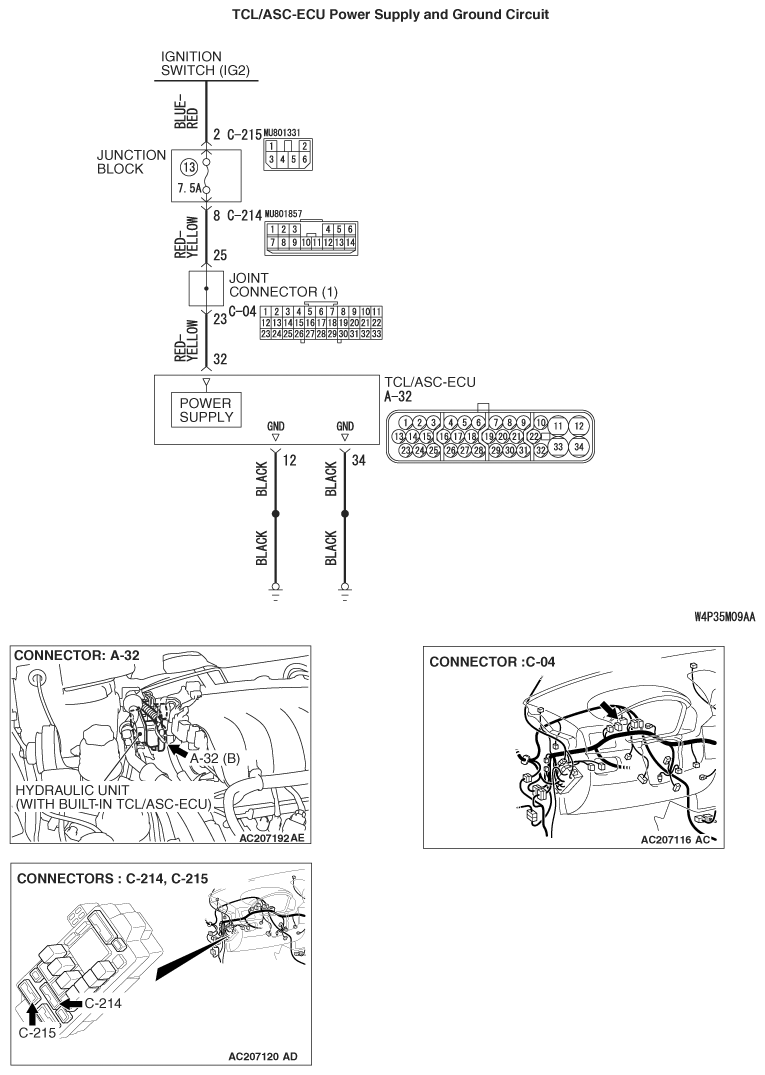

Fig 1: TCL/ASC-ECU Power Supply And Ground Circuit Diagram

G06696513

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
