When The Active Stability Control Is Increasing The Fluid Pressure While The Brake Pedal Is Depressed

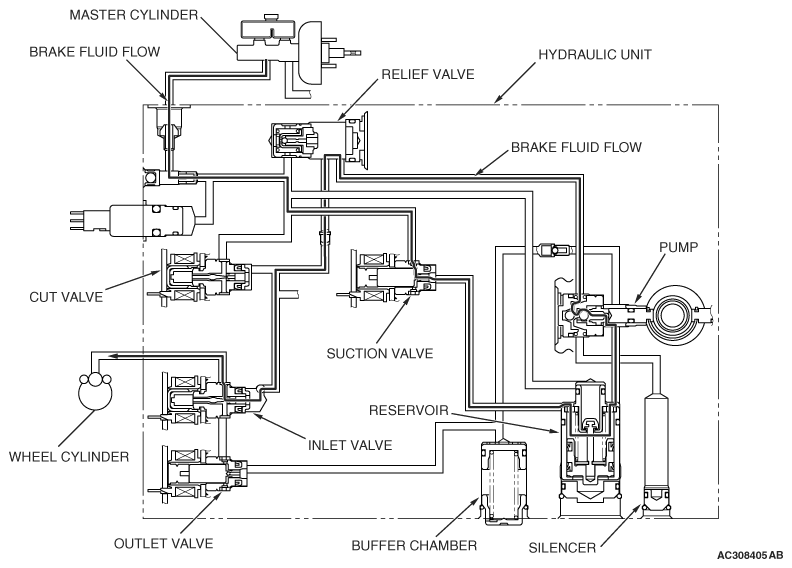

Fig 1: Active Skid Control System Operation Diagram - When Active Stability Control Is Increasing Fluid Pressure While Brake Pedal Is Depressed

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The system closes the cut valve to shut the fluid channel from the master cylinder to the wheel cylinders, and opens the suction valve to open the fluid channel from the master cylinder to the hydraulic unit reservoir. The brake fluid, which is pumped from the master cylinder to the hydraulic unit reservoir, is supplied to the wheel cylinders.

NOTE: At this time, the hydraulic unit reservoir cannot operate due to the fluid pressure from the master cylinder.

STATUS OF THE OPERATION VALVE

STATUS OF OPERATION VALVE

ITEM

ENERGIZATION

OPEN/CLOSE

Cut valve

Closed

Suction valve

ON or OFF⁽¹⁾

Open or closed⁽¹⁾

Inlet valve

OFF

Open

Outlet valve

OFF

Closed

⁽¹⁾	When the ASC is operating while the brake pedal is depressed, the suction valve turns on and off according to the brake fluid amount supplied to the buffer chamber.
