Diagnostic Troubleshooting Flow

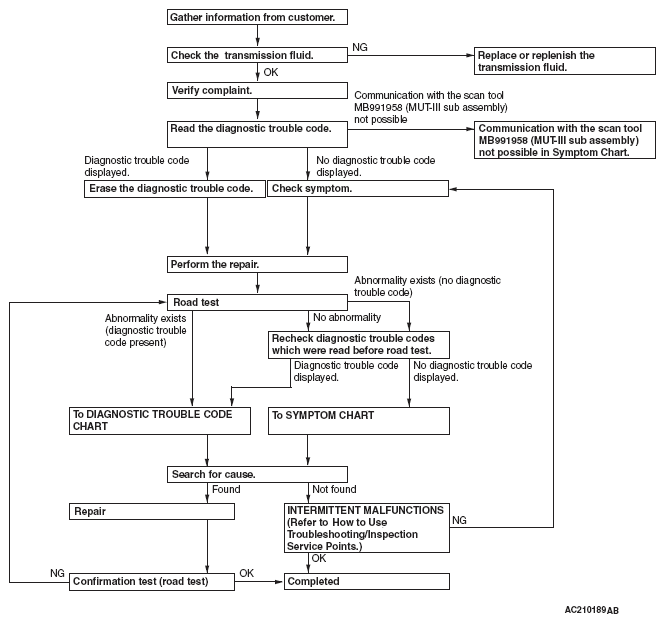

Fig 1: Diagnostic Troubleshooting Flow Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
