Home >> Mitsubishi >> 2010 >> Outlander ES, AWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Intake System And Exhaust System >> Intake Manifold >> Removal And Installation < 3.0L Engine > >> Notes

Removal And Installation < 3.0L Engine >: Notes

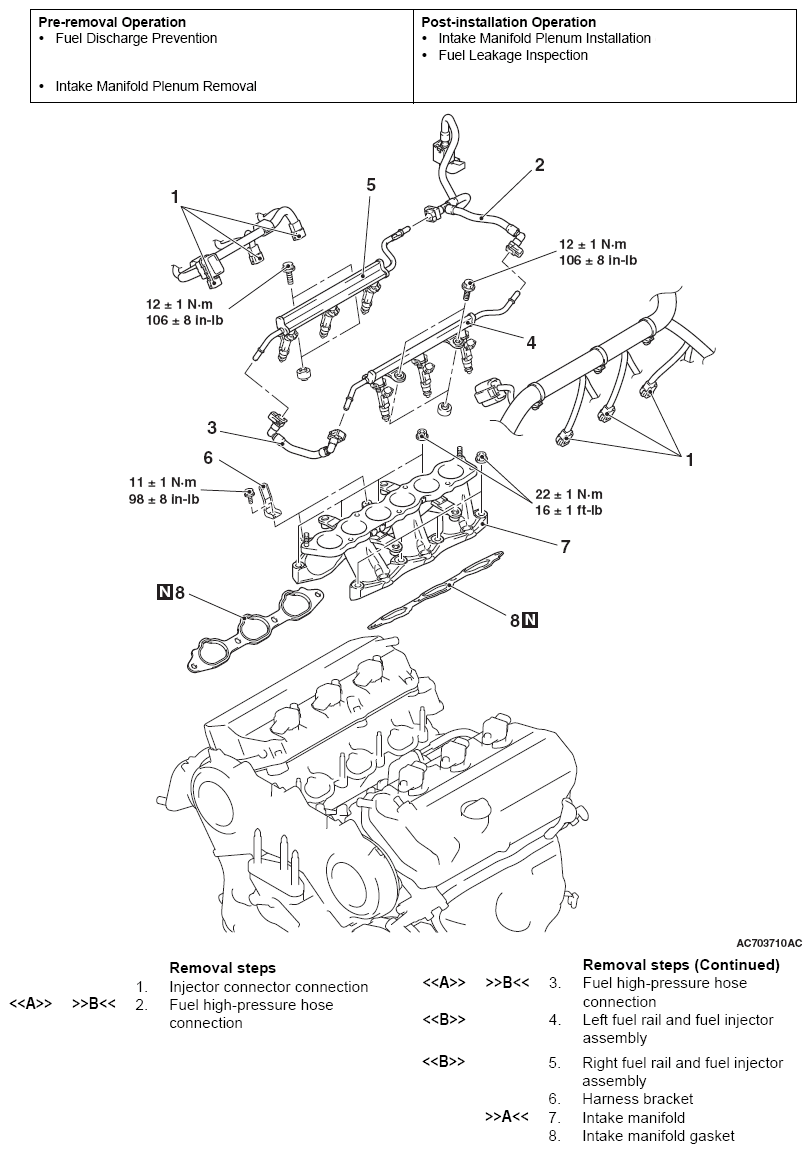

Fig 1: Intake Manifold Replacement Components With Torque Specifications - 3.0L Engine

G06481572

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
